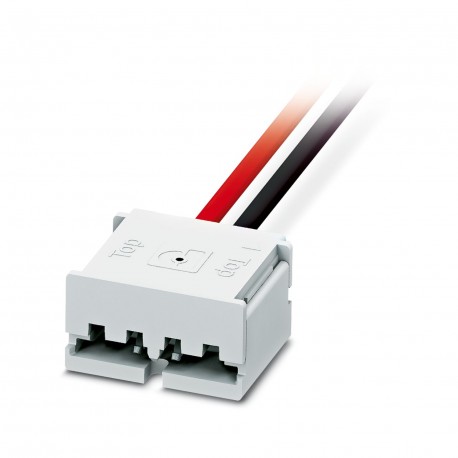

PHOENIX CONTACT PTF 0,3/ 2-WB-10-HPC4001L250KP PTF 0,3/ 2-WB-10-HPC4001L250KP 1025890 PHOENIX CONTACT Connectors for printed circuit board ready-made, 2-po.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PTF 0,3/ 2-WB-10-HPC4001L250KP 1025890 PHOENIX CONTACT Connectors for printed circuit board ready-made, 2-po..

PTF 0,3/ 2-WB-10-HPC4001L250KP

1025890

PHOENIX CONTACT

20 Pcs.

Connectors for printed circuit board ready-made, 2-poles Ready-made printed circuit board connectors Assembled PCB connector

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeAssembled PCB connector
Product familyPTF 0,3/..-WB-H
Product lineCOMBICON Connectors Special
Number of positions2
Pitch2.40 mm
Number of connections2
Number of rows1
Number of potentials2
Data management status
Article revision00
Electrical properties
Nominal voltage UN< 25 V
Rated voltage (III/3)25 V
Rated voltage (III/2)25 V
Mounting
Mounting typeDirect plug-in method
Notes
Note regarding documentationRefer to the installation note in the download area.
Dimensions
Dimensional drawingedyvovzxrs.jpg
Pitch2.40 mm
Length [l]1000.00 mm
Mechanical tests
Tensile strength of crimp connections
ResultTest passed
Electrical tests
Temperature-rise test
SpecificationIEC 60838-1:2004-10 + AMD 1:2008-07 + AMD 2:2011-03
Requirement temperature-rise testIncrease in temperature ≤ 45 K
Insulation resistance
SpecificationIEC 60838-1:2004-10 + AMD 1:2008-07 + AMD 2:2011-03
Insulation resistance, neighboring positions> 1 MΩ
Air clearances and creepage distances
SpecificationIEC 60838-1:2004-10 + AMD 1:2008-07 + AMD 2:2011-03
Insulating material groupIIIa
Rated insulation voltage (III/3)25 V
Rated insulation voltage (III/2)25 V
Environmental and real-life conditions
Vibration test
SpecificationIEC 60068-2-6:2007-12
Frequency10 - 500 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Acceleration5g (60.1 Hz ... 150 Hz)
Test duration per axis2 h
Test directionsX-, Y- and Z-axis
Glow-wire test
SpecificationIEC 60695-2-11:2000-10
Temperature650 °C
Time of exposure30 s
Ambient conditions
Ambient temperature (operation)-30 °C ... 100 °C (dependent on the derating curve)
Ambient temperature (storage/transport)-40 °C ... 85 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 100 °C
Connector
Connection 1
Insulating materialPBT
CTI according to IEC 60112275
Packaging specifications
Type of packagingpacked in cardboard

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
