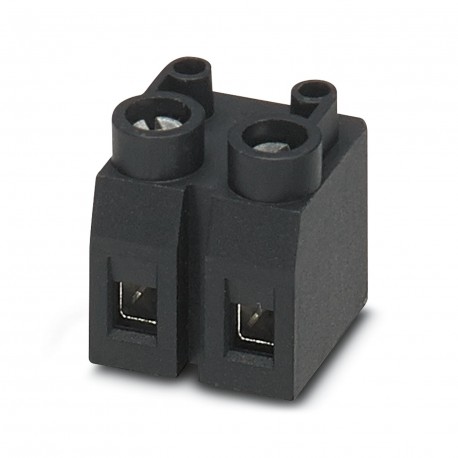

PHOENIX CONTACT PTE 1,5/ 2-7,5 EU PTE 1,5/ 2-7,5 EU 1709231 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PTE 1,5/ 2-7,5 EU 1709231 PHOENIX CONTACT PCB terminal block

PTE 1,5/ 2-7,5 EU

1709231

PHOENIX CONTACT

250 Pcs.

PCB terminal block Terminal block for printed circuit board, number of potentials: 2, number of rows: 1, number of poles per row: 2, article family: PTE 1.5, pitch: 7.5 mm, connection type: Screw connection with traction capsule, screw clamping form: L Longitudinal slot, mounting: Wave soldering, conductor connection direction/printed circuit board: 0 °, color: black, Pin length [P]: 3 mm, number of welding pins per potential: 1, packaging type: boxed packaging. For special applications, depending on overvoltage category IV and dirt grade 3, an assigned insulation voltage of 250 V with a dimensioning transient voltage of 1 kV is also possible. Printed circuit board terminal, number of potentials: 2, number of rows: 1, number of positions per row: 2, product range: PTE 1,5, pitch: 7.5 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: black, Pin layout: Linear pinning, Solder pin [P]: 3 mm, number of solder pins per potential: 1, type of packaging: packed in cardboard. For special applications, a rated insulation voltage of 250 V at a rated surge voltage of 1 kV is also possible according to overvoltage category IV and degree of pollution 3.

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typePrinted circuit board terminal
Product familyPTE 1,5
Product lineCOMBICON Terminals S
TypePC termination block
Number of positions2
Pitch7.5 mm
Number of connections2
Number of rows1
Number of potentials2
Pin layoutLinear pinning
Solder pins per potential1
Data management status
Article revision00
Mounting
Mounting typeWave soldering
Pin layoutLinear pinning
Material specifications
Material data - housing
Color (Housing)black (9005)
Dimensions
Dimensional drawingwvchdegsqi.jpg
Pitch7.5 mm
Width [w]13.24 mm
Height [h]16.58 mm
Length [l]13 mm
Installed height13.58 mm
Solder pin length [P]3 mm
PCB design
Pin spacing7.5 mm
Hole diameter1.3 mm
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-40 °C (dependent on the derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Packaging specifications
Type of packagingpacked in cardboard
Outer packaging typeCarton

ETIM for 1709231 Connectors (EC002643)
Feature Name Feature Value
Height (EF000040) 16.58 mm
Number of electrical connections (EF008252) 2
Number of levels (EF002659) 1
Modular spacing connections (EF006827) 7.5 mm
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connection type conductor (EF006821) Screw connection
Connection type PCB (EF006822) Soldering connection
Diameter connection pin (EF006823) 1.3 mm
Length pin (EF006825) 3 mm
Housing colour (EF000136) Black
Type of banding (EF007011) Carton (for SMD)
