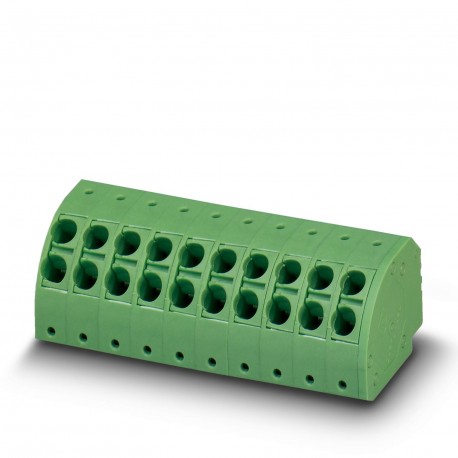

PTDA 2,5/ 2-PH-5,0 BD:4,3SO QR 1711950 PHOENIX CONTACT Plug

PTDA 2,5/ 2-PH-5,0 BD:4,3SO QR

1711950

PHOENIX CONTACT

250 Pcs.

Plug Connector for printed circuit board, nominal section: 2.5 mm², color: green, nominal current: 14 A, nominal voltage (III/2): 400 V, contact surface: Tin, contact type: Female, number of rows: 1, number of poles: 2, family of articles: PTDA 2.5/.. -PH, pitch: 5mm, connection type: Push-in spring connection, driver/printed circuit board connection direction: 45°, plug-in system: COMBICON PST 1.3, lock: without, fixing type: without, packaging type: boxed PCB connector, nominal cross-section: 2.5 mm2, colour: green, rated current: 14 A, dimensioning voltage (III/2): 400 V, contact surface: Sn, contact connection type: Female, number of rows: 1, number of poles: 2, product series: PTDA 2.5/.. -PH, pitch: 5 mm, connection type: Push-in spring connection, conductor/board connection direction: 45 °, plug system: COMBICON PST 1.3, locking: none, fastening type: none, packaging type: packed in carton

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1711950
Packing unit1
GTIN4055626267395
Custom tariff number85366990

Dimensions

Length [ l ]20 mm
Width [ w ]11.4 mm
Height [ h ]16 mm
Pitch5 mm
Dimension a5 mm

General

Range of articlesPTDA 2,5/..-PH
Number of positions2
Connection methodPush-in spring connection
Insulating material groupI
Rated voltage (III/2)400 V
Nominal current IN13.5 A
Nominal cross section2.5 mm²
Flammability rating according to UL 94V0

Standards and Regulations

Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1711950 Connectors (EC002638)
Feature Name Feature Value
Type of connection (EF000064) Other
Contact type (EF001587) Bus
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 5 mm
Modular spacing connections (EF006827) 5 mm
Angle contact/conductor connection (EF007546) Other
Rated current In (EF008250) 13.5 A
Rated voltage (EF000228) 400 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Type of electric connection (EF003961) Spring clamp connection
Connectable cable type (EF006816) Tubular cable
Material of contact surface (EF004020) Tin
Material contact (EF007544) Copper
Material insulation body (EF007543) Polyamide (PA)
Housing material (EF001596) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
