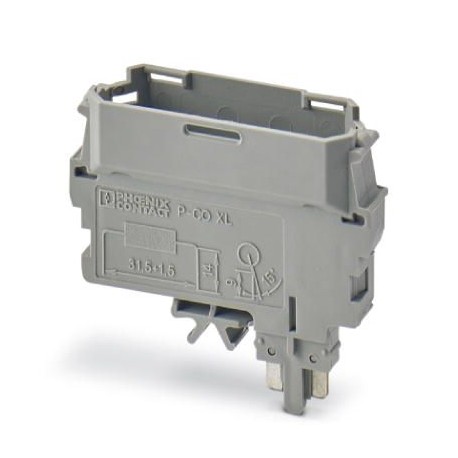

PHOENIX CONTACT P-CO XL P-CO XL 3036797 PHOENIX CONTACT Component connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P-CO XL 3036797 PHOENIX CONTACT Component connector

P-CO XL

3036797

PHOENIX CONTACT

10 Pcs.

Component connector Component connector, for the assembly of self-selected construction elements up to a diameter of 10 mm and a dissipated power up to 1 W, nominal voltage: 400 V, nominal current: 10 A, connection type: Plug-in connection, length: 41.2 mm, width: 12.3 mm, height: 41.2 mm, number of poles: 1, color: gray, mounting class: Plug-in (Slot)

Automation > Component plug terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3036797
Packing unit10 pc
Minimum order quantity10 pc
Catalog pagePage 411 (C-1-2017)
GTIN4055626042930
Weight per Piece (excluding packing)7.800 g
Custom tariff number85366990
Country of originPL (Poland)

General

NoteNotes on operation Components with a wire diameter from 0.3 mm up to 1.2 mm can be used
Number of positions1
Potentials1
Colorgray
Insulating materialPA
Flammability rating according to UL 94V0

Dimensions

Width12.3 mm
Length41.2 mm
Height37.5 mm

General

Maximum load current10 A
Nominal current IN10 A (the current is determined by the component used)
Nominal voltage UN400 V (the voltage is determined by the component used)
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))130 °C
Static insulating material application in cold-60 °C
Behavior in fire for rail vehicles (DIN 5510-2)Test passed
Flame test method (DIN EN 60695-11-10)V0
Oxygen index (DIN EN ISO 4589-2)>32 %
NF F16-101, NF F10-102 Class I2
NF F16-101, NF F10-102 Class F2
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Calorimetric heat release NFPA 130 (ASTM E 1354)28 MJ/kg
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Connection data

Connection methodPlug connection

Standards and Regulations

Flammability rating according to UL 94V0
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 3036797 Terminal blocks (EC002018)
Feature Name Feature Value
Mounting method (EF000003) Pluggable
Width/grid dimension (EF002522) 12.3 mm
Colour (EF000007) Grey
Type of electric connection (EF003961) Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
