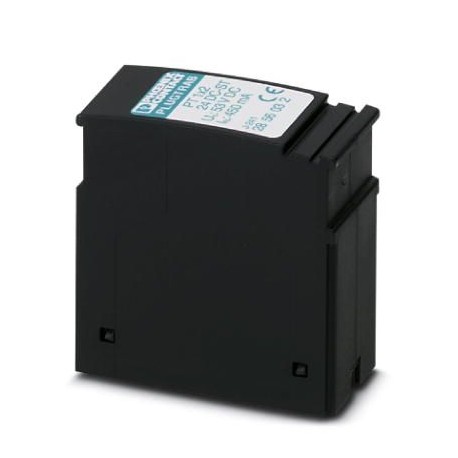

PHOENIX CONTACT PT 1X2-24DC-ST PT 1X2-24DC-ST 2856032 PHOENIX CONTACT Surge protection plug View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PT 1X2-24DC-ST 2856032 PHOENIX CONTACT Surge protection plug

PT 1X2-24DC-ST

2856032

PHOENIX CONTACT

1 Pcs.

Surge protection plug PT plug-in protection with circ. Protec. P/ un Circ. 2 cond. floating. Suitable for HART.

Automation > Surge protection device for data networks/MCR-technology
Trabtech (TT)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2856032
Packing unit10 pc
Catalog pagePage 98 (C-4-2017)
GTIN4017918599201
Weight per Piece (excluding packing)20.000 g
Custom tariff number85363010
Country of originDE (Germany)

Dimensions

Height45 mm
Width17.7 mm
Depth52 mm
Horizontal pitch1 Div.
Complete module height90 mm
Complete module width17.7 mm
Complete module depth65.5 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 85 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Altitude≤ 2000 m (amsl (above mean sea level))
Degree of protectionIP20

General

Housing materialPA 6.6
Flammability rating according to UL 94V-0
Colorjet black RAL 9005
Overvoltage category2
Degree of pollutionIII
Mounting typeon base element
TypeMale
Direction of actionLine-Line & Line-Signal Ground/Shield & optional Signal Ground/Shield-Earth Ground
Arrester can be tested with CHECKMASTER from software version:From SW rev. 1.00

Additional descriptions

NoteTechnical data is valid in association with the following specified base elements:
PT 1X2+F-BE 2856126
PT 1X2-BE 2856113

Protective circuit

IEC test classificationC1
C2
C3
D1
Nominal voltage UN24 V DC
Maximum continuous voltage UC28 V DC
20 V AC
Rated current450 mA (45°C)
Operating effective current ICat UC≤ 5 µA
Residual current IPE≤ 1 µA (with PT 1X2+F-BE)
≤ 2 µA (with PT 1X2-BE)
Nominal discharge current In(8/20) µs (line-line)10 kA
Nominal discharge current In(8/20) µs (line-earth)10 kA
Pulse discharge current Iimp(10/350) µs2.5 kA
Total discharge current Itotal(8/20) µs20 kA
Max. discharge current Imax(8/20) µs maximum (line-line)10 kA
Max. discharge current Imax(8/20) µs maximum (line-earth)10 kA
Nominal pulse current Ian (10/1000) µs (line-line)30 A
Output voltage limitation at 1 kV/µs (line-line) spike≤ 45 V
Output voltage limitation at 1 kV/µs (line-earth) spike≤ 450 V (with PT 1X2-BE)
≤ 1 kV (with PT 1X2+F-BE)
Output voltage limitation at 1 kV/µs (line-line) static≤ 40 V
Output voltage limitation at 1 kV/µs (line-earth) static≤ 25 V (with PT 1X2-BE)
≤ 50 V (with PT 1X2+F-BE)
Residual voltage at In(line-line)≤ 40 V
Residual voltage with Ian (10/1000) µs (line-line)≤ 50 V
Voltage protection level Up(line-line)≤ 70 V (C1 - 1 kV/500 A)
≤ 70 V (C2 - 10 kV / 5 kA)
≤ 60 V (C2 - 6 kV / 3 kA)
≤ 50 V (C3 - 25 A)
Voltage protection level Up(line-earth)≤ 450 V (C1 - 1 kV / 500 A with PT 1X2-BE)
≤ 550 V (C2 - 10 kV / 5 kA with PT 1X2-BE)
≤ 1000 V (C2 - 10 kV / 5 kA with PT 1X2+F-BE)
≤ 500 V (C2 - 6 kV / 3 kA with PT 1X2-BE)
Voltage protection level Upstatic (line-line)≤ 40 V (C2 - 10 kV / 5 kA)
Voltage protection level Upstatic (line-earth)≤ 50 V (C2 - 10 kV / 5 kA with PT 1X2-BE)
≤ 100 V (C2 - 10 kV / 5 kA with PT 1X2+F-BE)
Response time tA(line-line)≤ 1 ns
Response time tA(line-earth)≤ 100 ns
Input attenuation aE, sym.typ. 0.5 dB (≤ 1 MHz / 50 Ω)
typ. 0.2 dB (≤ 400 kHz / 150 Ω)
typ. 0.1 dB (≤ 70 kHz / 600 Ω)
Cut-off frequency fg (3 dB), sym. in 50 Ohm systemtyp. 4.5 MHz
Cut-off frequency fg (3 dB), sym. in 150 Ohm systemtyp. 1.5 MHz
Cut-off frequency fg (3 dB), sym. in 600 Ohm systemtyp. 600 kHz
Capacity (line-line)typ. 1.4 nF
Capacity (line-earth)typ. 4 pF (with PT 1X2-BE)
typ. 2 pF (with PT 1X2+F-BE)
Resistance in series2.2 Ω ±10 %
Surge protection fault messagenone
Max. required back-up fuse500 mA (T)
Impulse durability (line-line)C1 - 1 kV/500 A
C2 - 6 kV/3 kA
C2 - 10 kV/5 kA
C3 - 25 A
Impulse durability (line-earth)C1 - 1 kV/500 A
C2 - 6 kV/3 kA
C2 - 10 kV/5 kA
D1 - 2.5 kA

Connection data

Connection methodScrew connection (in connection with the base element)
Screw threadM3
Tightening torque0.5 Nm
Stripping length8 mm
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section AWG24 ... 12

Standards and Regulations

Standards/specificationsIEC 61643-21 2000 + corrigendum 2001 + A1:2008, modified + A2:2012
EN 61643-21 2001 + A1:2009 + A2:2013

Classifications


ETIM for 2856032 Earthing, lightning and surge protection (EC000943)
Feature Name Feature Value
Nominal voltage DC (EF008799) 24 V

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
