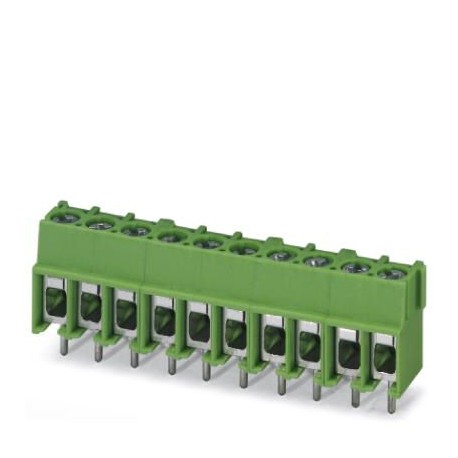

PHOENIX CONTACT PT 2,5/ 6-5,0-H BU PT 2,5/ 6-5,0-H BU 1025917 PHOENIX CONTACT PCB terminal block, nominal current: 32 A, rated voltage (III/2):.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PT 2,5/ 6-5,0-H BU 1025917 PHOENIX CONTACT PCB terminal block, nominal current: 32 A, rated voltage (III/2):..

PT 2,5/ 6-5,0-H BU

1025917

PHOENIX CONTACT

100 Pcs.

PCB terminal block, nominal current: 32 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², pitch: 5 mm, number of positions: 6, connection method: Screw connection with wire protector, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: blue, Pin layout: Linear pinning, Solder pin [P]: 4.1 mm Terminal block for printed circuit board, nominal current: 32 A, dimensioning voltage (III/2): 400 V, nominal section: 2.5 mm², Number of potentials: 6, Number of rows: 1, Number of poles per row: 6, article family: PT 2.5/.. -H, pitch: 5mm, connection type: Screw connection with wire protection bracket, mounting: Wave soldering, conductor/printed circuit board connection direction: 0°, color: blue, Pin arrangement: Linear pin arrangement, Pin length [P]: 4.1mm, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1025917
Packing unit1
GTIN4055626518275
Custom tariff number85369010

Item properties

Brief article descriptionPCB terminal block
Range of articlesPT 2,5/..-H
Pitch5 mm
Number of positions6
Connection methodScrew connection with wire protector
Drive form screw headPhilipps recess with slotted Torx
Mounting typeWave soldering
Pin layoutLinear pinning
Number of levels1
Number of connections6
Number of potentials6
Back to top

Electrical parameters

Nom. voltage400 V
Back to top

Connection capacity

Connection methodScrew connection with wire protector
pluggableno
Conductor cross section solid0.5 mm² ... 4 mm²
Conductor cross section flexible0.5 mm² ... 4 mm²
Conductor cross section AWG / kcmil20 ... 10
Conductor cross section flexible, with ferrule without plastic sleeve0.5 mm² ... 2.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.5 mm² ... 2.5 mm²
2 conductors with same cross section, solid0.5 mm² ... 1.5 mm²
2 conductors with same cross section, flexible0.5 mm² ... 1.5 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve0.5 mm² ... 0.75 mm²
2 conductors with same cross section, stranded, with TWIN ferrules with plastic sleeve0.5 mm² ... 1.5 mm²
Stripping length6.5 mm
Torque0.45 Nm ... 0.5 Nm
Back to top

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Metal surface terminal point (top layer)Tin (3 - 12 µm Sn)
Metal surface terminal point (middle layer)Nickel (1.5 - 4 µm Ni)
Metal surface soldering area (top layer)Tin (3 - 12 µm Sn)
Metal surface soldering area (middle layer)Nickel (1.5 - 4 µm Ni)
Back to top

Material data - housing

Insulating materialPA
Insulating material groupI
CTI according to IEC 60112850
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C
Back to top

Dimensions for the product

Dimensional drawing
Length [ l ]9 mm
Width [ w ]30 mm
Height [ h ]17.6 mm
Pitch5 mm
Height (without solder pin)13.5 mm
Solder pin [P]4.1 mm
Pin spacing5 mm
Pin dimensionsø 1 mm
Dimension a25 mm
Back to top

Dimensions for PCB design

Hole diameter1.3 mm
Pin spacing5 mm
Back to top

Packaging information

Type of packagingpacked in cardboard
Pieces per package100
Denomination packing unitsPcs.
Back to top

General product information

Type of noteNote on application
NoteFor safe conductor connection, always adhere to a defined tightening torque. Particularly in the case of PCB terminal blocks with two or three positions, the individual solder pin for each contact point cannot compensate for this. That is why the terminal blocks must be supported during conductor connection (held with one hand, support on the housing).
Back to top

Ambient conditions

Ambient temperature (storage/transport)-40 °C ... 70 °C
Ambient temperature (assembly)-5 °C ... 100 °C
Ambient temperature (operation)-40 °C ... 100 °C (Depending on the current carrying capacity/derating curve)
Back to top

Electrical tests

Rated current32 A
Conductor cross section4 mm²
Rated voltage (III/2)400 V
Rated surge voltage (III/2)4 kV
Back to top

Air clearances and creepage distances

Rated insulation voltage (III/3)250 V
Rated insulation voltage (III/2)400 V
Rated insulation voltage (II/2)630 V
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Back to top

Environmental Product Compliance

REACh SVHC
Lead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
