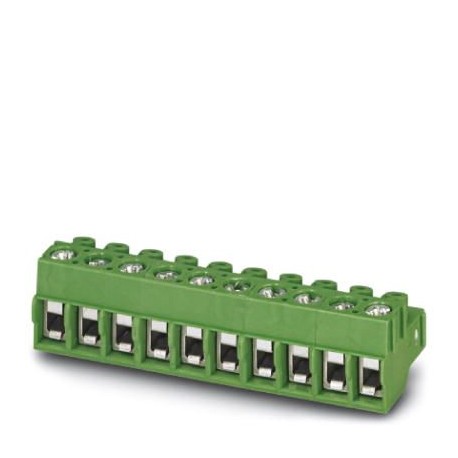

PT 1,5/ 9-PVH-5,0 BD:1-9 1730838 PHOENIX CONTACT Printed-circuit board connector

PT 1,5/ 9-PVH-5,0 BD:1-9

1730838

PHOENIX CONTACT

100 Pcs.

Printed-circuit board connector Connector for printed circuit board, nominal section: 1.5 mm², color: green, nominal current: 12 A, dimensioning voltage (III/2): 400 V, contact surface: Tin, contact type: Female connection, Number of potentials: 9, Number of rows: 1, Number of poles per row: 9, number of connections: 9, family of articles: PT 1.5/.. -PVH, pitch: 5 mm, connection type: Screw connection with wire protection bracket, conductor connection direction/printed circuit board: 0 °, Stecksystem: COMBICON COMPACT PST 1.3, Lock: without, packaging type: boxed

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1730838
Packing unit100 pc
Minimum order quantity100 pc
NoteMade to Order (non-returnable)
GTIN4046356154918
Weight per Piece (excluding packing)10.200 g
Custom tariff number85366990
Country of originDE (Germany)

Dimensions

Length [ l ]11.4 mm
Width [ w ]45 mm
Height [ h ]11.4 mm
Pitch5 mm
Dimension a40 mm

General

Range of articlesPT 1,5/..-PVH
Number of positions9
Connection methodScrew connection with wire protector
Rated voltage (III/3)250 V
Connection in acc. with standardEN-VDE
Nominal current IN12 A
Nominal cross section1.5 mm²

Connection data

Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.1.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.1.5 mm²
Conductor cross section AWG min.26
Conductor cross section AWG max.14
2 conductors with same cross section, solid min.0.2 mm²
2 conductors with same cross section, solid max.0.75 mm²
2 conductors with same cross section, stranded min.0.2 mm²
2 conductors with same cross section, stranded max.0.75 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.0.25 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.0.34 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.0.75 mm²
Minimum AWG according to UL/CUL26
Maximum AWG according to UL/CUL12

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
