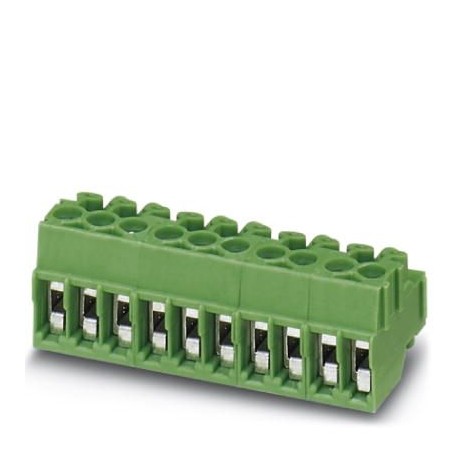

PHOENIX CONTACT PT 1,5/10-PVH-3,5 BD:11-20 PT 1,5/10-PVH-3,5 BD:11-20 1710968 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PT 1,5/10-PVH-3,5 BD:11-20 1710968 PHOENIX CONTACT PCB terminal block

PT 1,5/10-PVH-3,5 BD:11-20

1710968

PHOENIX CONTACT

100 Pcs.

PCB terminal block Connector for printed circuit board, nominal section: 1.5 mm², color: green, nominal current: 8 A, dimensioning voltage (III/2): 200 V, contact surface: Tin, contact type: Female connection, Number of potentials: 10, Number of rows: 1, Number of poles per row: 10, number of connections: 10, family of articles: PT 1.5/.. -PVH, pitch: 3.5 mm, connection type: Screw connection with wire protection bracket, conductor connection direction/printed circuit board: 0 °, Stecksystem: COMBICON COMPACT PST 1, Lock: without, packaging type: boxed

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1710968
Packing unit100 pc
Minimum order quantity50 pc
NoteMade to Order (non-returnable)
GTIN4046356079402
Weight per Piece (excluding packing)6.760 g
Custom tariff number85366990
Country of originDE (Germany)

Dimensions

Length [ l ]11 mm
Width [ w ]35 mm
Height [ h ]11 mm
Pitch3.5 mm
Dimension a31.5 mm

General

Range of articlesPT 1,5/..-PVH
Number of positions10
Connection methodScrew connection with wire protector
Rated voltage (III/3)160 V
Connection in acc. with standardEN-VDE
Nominal current IN8 A
Nominal cross section1.5 mm²

Connection data

Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.1.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.1.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.0.75 mm²
Conductor cross section AWG min.26
Conductor cross section AWG max.16
2 conductors with same cross section, solid min.0.2 mm²
2 conductors with same cross section, solid max.0.34 mm²
2 conductors with same cross section, stranded min.0.2 mm²
2 conductors with same cross section, stranded max.0.5 mm²
Minimum AWG according to UL/CUL26
Maximum AWG according to UL/CUL16

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
