View larger
Images are for illustrative purposes only. Please refer to data sheet for details

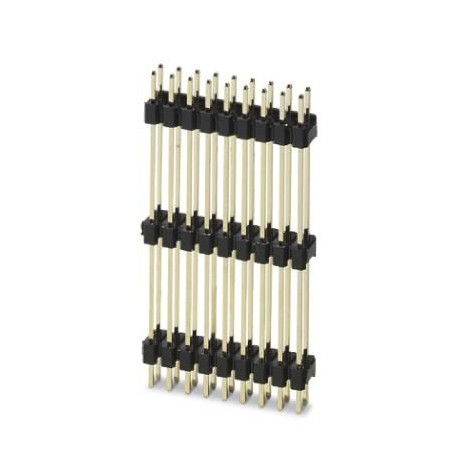

PSTD 0,65X0,65/18-3IS-2,54 2202993 PHOENIX CONTACT Pin strip
PSTD 0,65X0,65/18-3IS-2,54
2202993
PHOENIX CONTACT
1 Pcs.
Pin strip
Sprat for attaching to an additional printed circuit board or to the perforated weft printed circuit board with the HBUS
Connectors > Printed circuit board connector
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2202993 |
|---|---|
| Packing unit | 60 pc |
| GTIN | 4055626292601 |
| Weight per Piece (excluding packing) | 1.800 g |
| Custom tariff number | 85366990 |
| Country of origin | TW (Taiwan) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440309eCl@ss 8.027440402eCl@ss 9.027440402
| Feature Name | Feature Value |
|---|---|
| Connector model (EF007495) | Fixed connector |
| Contact type (EF001587) | Pin |
| Number of poles (EF001391) | 18 |
| Number of plug-in contact rows (EF006935) | 2 |
| Modular spacing contacts (EF007326) | 2.54 mm |
| Modular spacing connections (EF006827) | 2.54 mm |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Type of electric connection (EF003961) | Other |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Black |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
