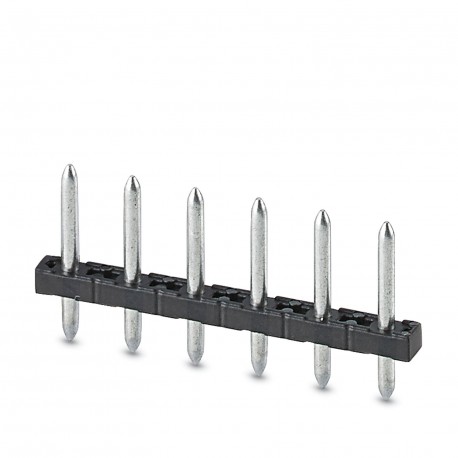

PHOENIX CONTACT PST 1,3/ 8-5,0 RD VPE250 PST 1,3/ 8-5,0 RD VPE250 1107394 PHOENIX CONTACT Pin strip, nominal current: 12 A, rated voltage (III/2): 32.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PST 1,3/ 8-5,0 RD VPE250 1107394 PHOENIX CONTACT Pin strip, nominal current: 12 A, rated voltage (III/2): 32..

PST 1,3/ 8-5,0 RD VPE250

1107394

PHOENIX CONTACT

250 Pcs.

Pin strip, nominal current: 12 A, rated voltage (III/2): 320 V, nominal cross section: 1.5 mm², number of positions: 8, pitch: 5 mm, color: red, contact surface: Tin, mounting: THR soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm Male connector, nominal section: 1.5 mm², color: red, nominal current: 12 A (Depending on the connector used), nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of rows: 1, number of poles: 8, family of articles: PST 1.3/.. -V, pitch: 5 mm, mounting: THR solder, pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, plug-in system: COMBICON PST 1.3, lock: without, fixing type: without, packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1107394
Packing unit1
GTIN4063151007980
Custom tariff number85366930

Drawings

Diagram

Diagram
Type: PTS 1,5/...-PH-5,0 CLIP with PST 1,3/...-5,0

Back to top

Dimensions

Length [ l ]2.8 mm
Width40 mm
Pitch5 mm
Dimension a35 mm
Width [ w ]40 mm
Height [ h ]13 mm
Height9.5 mm
Length of the solder pin3.5 mm
Pin dimensionsø 1.3 mm
Length2.8 mm
Back to top

General

Range of articlesPST 1,3/..-V
Colorred
Number of positions8
Back to top

Classifications

eCl@ss

eCl@ss 8.027440402
eCl@ss 9.027440402
Back to top

ETIM

ETIM 5.0EC002637
ETIM 6.0EC002637
ETIM 7.0EC002637
Back to top

ETIM for 1107394 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 5 mm
Modular spacing connections (EF006827) 5 mm
Rated current In (EF008250) 12 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.3 mm
Length pin (EF006825) 3.5 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Red
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Carton (for SMD)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
