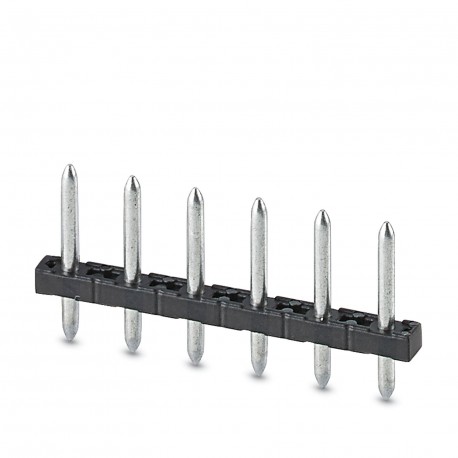

PHOENIX CONTACT PST 1,3/ 8-5,0 GY7035 PST 1,3/ 8-5,0 GY7035 1096348 PHOENIX CONTACT Pin strip, nominal current: 12 A, rated voltage (III/2): 320 V.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PST 1,3/ 8-5,0 GY7035 1096348 PHOENIX CONTACT Pin strip, nominal current: 12 A, rated voltage (III/2): 320 V..

PST 1,3/ 8-5,0 GY7035

1096348

PHOENIX CONTACT

100 Pcs.

Pin strip, nominal current: 12 A, rated voltage (III/2): 320 V, nominal cross section: 1.5 mm², number of positions: 8, pitch: 5 mm, color: light gray, contact surface: Tin, mounting: THR soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm Male connector, nominal section: 1.5 mm², color: bright gray, nominal current: 12 A (Depending on the connector used), nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of rows: 1, number of poles: 8, family of articles: PST 1.3/.. -V, pitch: 5 mm, mounting: THR solder, pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, plug-in system: COMBICON PST 1.3, lock: without, fixing type: without, packaging type: boxed Pin strip, nominal cross section: 1.5 mm2, color: light gray, nominal current: 12 A (depends on the plug used), rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of rows: 1, number of positions: 8, product range: PST 1,3/..-V, pitch: 5 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, plug-in system: COMBICON PST 1,3, locking: without, mounting: without, type of packaging: packed in cardboard

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typePin strip
Product familyPST 1,3/..-V
Product lineCOMBICON Connectors M
Number of positions8
Pitch5 mm
Number of rows1
Pin layoutLinear pinning
Data management status
Article revision00
Electrical properties
Nominal current IN12 A (depends on the plug used)
Nominal voltage UN320 V
Contact resistance1.6 mΩ
Rated voltage (III/3)250 V
Rated surge voltage (III/3)4 kV
Rated voltage (III/2)320 V
Rated surge voltage (III/2)4 kV
Rated voltage (II/2)400 V
Rated surge voltage (II/2)4 kV
Mounting
Mounting typeTHR soldering / wave soldering
Pin layoutLinear pinning
Processing notes
Moisture Sensitive LevelMSL 1
Classification temperature Tc260 °C
Solder cycles in the reflow3
Material specifications
Material data - contact
NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicsTin-plated
Metal surface contact area (top layer)Tin (3 - 5 µm Sn)
Metal surface contact area (middle layer)Nickel (1 - 3 µm Ni)
Metal surface soldering area (top layer)Tin (3 - 5 µm Sn)
Metal surface soldering area (middle layer)Nickel (1 - 3 µm Ni)
Material data - housing
Color (Housing)light gray (7035)
Insulating materialPA
Insulating material groupIIIa
CTI according to IEC 60112250
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C
Dimensions
Dimensional drawingdvbtjqggdc.jpg
Pitch5 mm
Width [w]40 mm
Height [h]13 mm
Length [l]2.8 mm
Installed height9.5 mm
Solder pin length [P]3.5 mm
Pin dimensionsø 1.3 mm
PCB design
Hole diameter1.3 mm
Mechanical tests
Visual inspection
SpecificationIEC 60512-1-1:2002-02
ResultTest passed
Dimension check
SpecificationIEC 60512-1-2:2002-02
ResultTest passed
Insertion and withdrawal forces
ResultTest passed
No. of cycles25
Insertion strength per pos. approx.5 N
Withdraw strength per pos. approx.5 N
Contact holder in insert
SpecificationIEC 60512-15-1:2008-05
Contact holder in insert
Requirements >20 N		Test passed
Resistance of inscriptions
SpecificationIEC 60068-2-70:1995-12
ResultTest passed
Electrical tests
Thermal test Test group C
SpecificationIEC 60512-5-1:2002-02
Tested number of positions12
Insulation resistance
SpecificationIEC 60512-3-1:2002-02
Insulation resistance, neighboring positions> 5 MΩ
Temperature cycles
SpecificationIEC 60999-1:1999-11
ResultTest passed
Air clearances and creepage distances
SpecificationIEC 60664-1:2007-04
Insulating material groupIIIa
Comparative tracking index (IEC 60112)CTI 250
Rated insulation voltage (III/3)250 V
Rated surge voltage (III/3)4 kV
minimum clearance value - non-homogenous field (III/3)3 mm
minimum creepage distance (III/3)4 mm
Rated insulation voltage (III/2)320 V
Rated surge voltage (III/2)4 kV
minimum clearance value - non-homogenous field (III/2)3 mm
minimum creepage distance (III/2)3.2 mm
Rated insulation voltage (II/2)400 V
Rated surge voltage (II/2)4 kV
minimum clearance value - non-homogenous field (II/2)3 mm
minimum creepage distance (II/2)4 mm
Environmental and real-life conditions
Vibration test
SpecificationIEC 60068-2-6:2007-12
Frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Acceleration5g (60.1 Hz ... 150 Hz)
Test duration per axis2.5 h
Test directionsX-, Y- and Z-axis
Durability test
SpecificationIEC 60512-9-1:2010-03
Impulse withstand voltage at sea level4.8 kV
Contact resistance R11.6 mΩ
Contact resistance R21.7 mΩ
Insertion/withdrawal cycles25
Insulation resistance, neighboring positions> 5 MΩ
Climatic test
SpecificationISO 6988:1985-02
Corrosive stress0.2 dm3SO2on 300 dm3/40 °C/1 cycle
Thermal stress100 °C/168  h
Power-frequency withstand voltage2.21 kV
Ambient conditions
Ambient temperature (operation)-40 °C ... 100 °C (dependent on the derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 100 °C
Packaging specifications
Type of packagingpacked in cardboard
