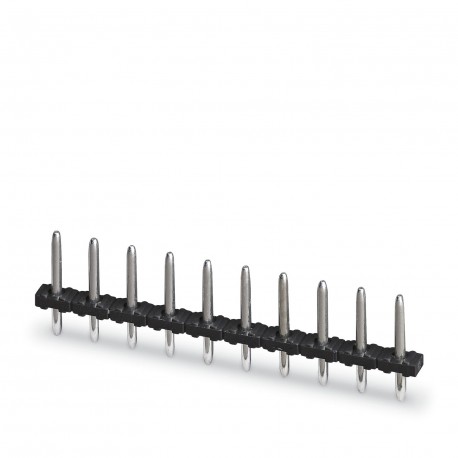

PST 1,3/ 7-5,0 L18 1795006 PHOENIX CONTACT Male connector, nominal current: 12 A, number of poles: 7, pitch:..
PST 1,3/ 7-5,0 L18
1795006
PHOENIX CONTACT
50 Pcs.
Male connector, nominal current: 12 A, number of poles: 7, pitch: 5 mm, color: black, surface of contact: Tin, assembly: Soldering THR, The maximum current depends on the connector used. Of the two current values, it is determining the lowest value for the connector and the male connector. The male connector is manufactured in plastic resistant to high temperatures, which is suitable for the process of reflow soldering.
Male connector, nominal section: 1.5 mm², color: black, nominal current: 12 A (Depending on the connector used), nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 7, number of rows: 1, number of poles: 7, number of connections: 7, family of articles: PST 1.3/.. -V, pitch: 5 mm, mounting: Solder THR, pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, plug-in system: COMBICON PST 1.3, locking: without, fixing type: without, packaging type: boxed, The maximum current depends on the connector used. Of the two current values, the lower value for the connector and the male connector is decisive. The plug is made of high-temperature resistant plastic, making it suitable for the reflow soldering process.
Plug, nominal cross-section: 1.5 mm2, colour: black, rated current: 12 A (regardless of the connector used), dimensioning voltage (III/2): 320 V, contact surface: Sn, contact connection type: plug, number of potentials: 7, number of rows: 1, number of poles: 7, number of connections: 7, product series: PST 1.3/.. -V, pitch: 5 mm, mounting: TTHR / wave soldering, pin layout: Linear pinning, pin length [P]: 3.5 mm, plug system: COMBICON PST 1.3, locking: none, fixing type: none, package type: packed in carton, The maximum current depends on the type of connector used. The lower of the two current values for connector and plug is decisive.
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Male connector, nominal current: 12 A, voltage and sizing (III/2): 320 V, number of poles: 7, pitch: 5 mm, color: black, surface of contact: Tin, assembly: Soldering THR, The maximum current depends on the connector used. Of the two current values, it is determining the lowest value for the connector and the male connector. The male connector is manufactured in plastic resistant to high temperatures, which is suitable for the process of reflow soldering.
Data commercial
| Key order | One million seven hundred ninety five thousand six |
|---|---|
| Packing unit | 50 pcs |
| Key selling | AACLBA - |
| Minimum order quantity | 50 pcs |
| EAN | Four trillion forty six billion three hundred fifty six million six hundred twenty five thousand two hundred forty one |
| Unit weight (excluding packaging) | 1,637 g |
| Tariff number tariff | Eighty five million three hundred sixty six thousand nine hundred ninety |
| Country of origin | DE (Germany) |
Dimensions
| Length [ l ] | 2.8 mm |
|---|---|
| Width | 35 mm |
| Step | 5 mm |
| Average | 30 mm |
| Width [ w ] | 35 mm |
| Height [ h ] | 18 mm |
| Height of construction | 14,5 mm |
| Length of the pin welding | 3.5 mm |
| Dimensions of pin | ø 1.3 mm |
| Length | 2.8 mm |
Overview
| Family of articles | PST 1,3/..-V |
|---|---|
| Tension and sizing (III/3) | 250 V |
| Connection according to standard | EN-VDE |
| Nominal current IN | 12 To |
| Class of flammability according to UL 94 | V0 |
| Color | black |
| Number of poles | Seven |
Standards and specifications
| Connection according to standard | EN-VDE |
|---|---|
| Class of flammability according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Space of time for the intended use: unlimited = FEUP-e |
|---|---|
| No dangerous substances above the thresholds |
Ratings
eCl@ss
| eCl@ss 4.0 | 272607xx |
|---|---|
| eCl@ss 4.1 | Twenty seven million two hundred sixty thousand seven hundred one |
| eCl@ss 5.0 | Twenty seven million two hundred sixty thousand seven hundred one |
| eCl@ss 5.1 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 6.0 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 7.0 | Twenty seven million four hundred forty thousand four hundred two |
| eCl@ss 8.0 | Twenty seven million four hundred forty thousand four hundred two |
| eCl@ss 9.0 | Twenty seven million four hundred forty thousand four hundred two |
ETIM
| ETIM 4.0 | EC002637 |
|---|---|
| ETIM 5.0 | EC002637 |
| ETIM 6.0 | EC002637 |
| ETIM 7.0 | EC002637 |
UNSPSC
| UNSPSC 6.01 | Thirty million two hundred eleven thousand eight hundred ten |
|---|---|
| UNSPSC 7.0901 | Thirty nine million one hundred twenty one thousand four hundred nine |
| UNSPSC 11 | Thirty nine million one hundred twenty one thousand four hundred nine |
| UNSPSC 12.01 | Thirty nine million one hundred twenty one thousand four hundred nine |
| UNSPSC 13.2 | Thirty nine million one hundred twenty one thousand four hundred nine |
| Feature Name | Feature Value |
|---|---|
| Connector model (EF007495) | Fixed connector |
| Contact type (EF001587) | Pin |
| Number of poles (EF001391) | 7 |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 5 mm |
| Modular spacing connections (EF006827) | 5 mm |
| Rated current In (EF008250) | 12 A |
| Rated voltage (EF000228) | 320 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Material of contact surface (EF004020) | Tin |
| Type of electric connection (EF003961) | Other |
| Diameter connection pin (EF006823) | 1.3 mm |
| Length pin (EF006825) | 3.5 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Black |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of fastening (EF002442) | Other |
| Type of banding (EF007011) | Carton (for SMD) |
