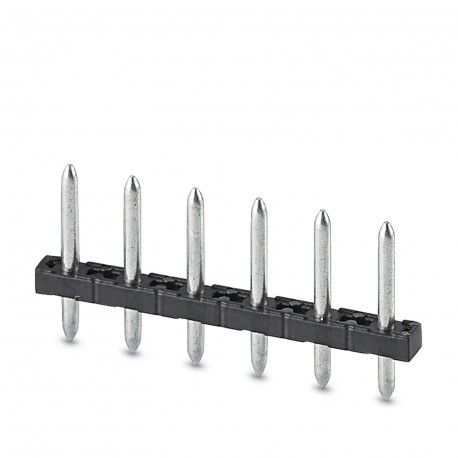

PHOENIX CONTACT PST 1,3/ 6-5,0 RD VPE250 PST 1,3/ 6-5,0 RD VPE250 1107408 PHOENIX CONTACT Male connector, nominal current: 12 A, number of poles: 6, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PST 1,3/ 6-5,0 RD VPE250 1107408 PHOENIX CONTACT Male connector, nominal current: 12 A, number of poles: 6, ..

PST 1,3/ 6-5,0 RD VPE250

1107408

PHOENIX CONTACT

250 Pcs.

Male connector, nominal current: 12 A, number of poles: 6, pitch: 5 mm, color: red, surface of contact: Tin, assembly: Soldering THR Male connector, nominal section: 1.5 mm², color: red, nominal current: 12 A (Depending on the connector used), nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of rows: 1, number of poles: 6, family of articles: PST 1.3/.. -V, pitch: 5 mm, mounting: THR solder, pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, plug-in system: COMBICON PST 1.3, lock: without, fixing type: without, packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Item Properties
Product TypeMale connector
Product FamilyPST 1.3/.. -V
Product LineCOMBICON Connectors M
Number of poles6
Step5 mm
Number of rows1
Pin DesignLinear Pin Arrangement
Data Maintenance Status
Article Review00
Electrical Properties
Nominal Current IN12 A (Depending on the connector used)
Nominal voltage UN320 V
Contact resistance1.6 mΩ
Sizing voltage (III/3)250 V
Dimensioning transient voltage (III/3)4 kV
Dimensioning voltage (III/2)320 V
Dimensioning Transient Voltage (III/2)4 kV
Nominal voltage (II/2)400 V
Dimensioning transient voltage (II/2)4 kV
assembly
Type of mountingTHR welding/wave welding
Pin DesignLinear Pin Arrangement
Processing Instructions
Moisture Sensitive LevelMSL 1
Classification Temperature Tc260 °C
Welding cycles. by reflux3
Material Data
Material data - contact
ObservationWEEE/RoHS compliant, filament-free according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu Alloy
Surface CharacteristicsGalvanically tinned
Metal surface contact area (top layer)Tin (3 - 5 μm Sn)
Metal Surface Contact Area (Middle Layer)Nickel (1 - 3 μm Ni)
Metal surface weld area (top layer)Tin (3 - 5 μm Sn)
Metal Surface Welding Area (Middle Layer)Nickel (1 - 3 μm Ni)
Material data - housing
Color (Housing)Red (3001)
Insulating materialPA
Insulating material groupIIIa
CTI according to IEC 60112250
Flammability class according to UL 94V0
Flammability number of GWFI incandescent filaments according to EN 60695-2-12850
Ignition temperature of incandescent filaments GWIT according to EN 60695-2-13775
Ball hardness test temperature according to EN 60695-10-2125 °C
Dimensions
Dimension Schemedvbtjqggdc.jpg
Step5 mm
Width [w]30 mm
Height [h]13 mm
Length [l]2.8 mm
Overall Height9.5 mm
Weld Pin Length [P]3.5 mm
Temple Dimensionsø 1.3 mm
Printed circuit board design
Hole diameter1.3 mm
Mechanical testing
Eye Exam
Test SpecificationDIN EN 60512-1-1:2003-01
ResultApproved Test
Dimensional Examination
Test SpecificationDIN EN 60512-1-2:2003-01
ResultApproved Test
Forces when plugging in and unplugging
ResultApproved Test
Number of cycles25
Plug-in force approx.5 N
Power when unplugging by pole approx.5 N
Used contact holder
Test SpecificationDIN EN 60512-15-1:2009-03
Contact Holder Used
Requirement >20 N		Approved Test
Resistance of the signs
Test SpecificationDIN EN 60068-2-70:1996-07
ResultApproved Test
Electrical Testing
Thermal Test Test Group C
Test SpecificationDIN EN 60512-5-1:2003-01
Number of poles tested12
Insulation resistance
Test SpecificationDIN EN 60512-3-1:2003-01
Insulation Resistance Adjacent Poles> 5 MΩ
Temperature Cycles
Test SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
ResultApproved Test
Creepage Lines & Air Isolation Distances
Test SpecificationDIN EN 60664-1 (VDE 0110-1):2008-01
Insulating material groupIIIa
Resistance to leakage currents (DIN EN 60112 (VDE 0303-11))CTI 250
Sizing Insulation Voltage (III/3)250 V
Nominal transient voltage (III/3)4 kV
minimum value of air insulation distance - non-homogeneous field (III/3)3 mm
Minimum creepage line value (III/3)4 mm
Sizing Insulation Voltage (III/2)320 V
Nominal transient voltage (III/2)4 kV
Minimum Value of Air Insulation Distance - Non-Homogeneous Field (III/2)3 mm
Minimum creepage line value (III/2)3.2 mm
Sizing Insulation Voltage (II/2)400 V
Nominal transient voltage (II/2)4 kV
Minimum Value of Air Insulation Distance - Non-Homogeneous Field (II/2)3 mm
Minimum creepage line value (II/2)4 mm
Environmental and life-life conditions
Vibration test
Test SpecificationDIN EN 60068-2-6 (VDE 0468-2-6):2008-10
frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Acceleration5g (60.1 Hz ... 150 Hz)
Test duration per axis2.5 h
Test DirectionsX, Y, and Z axes
Durability Test
Test SpecificationDIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12
Bearable shock voltage at sea level4.8 kV
Contact Resistance R11.6 mΩ
Contact Resistance R21.7 mΩ
Plug Cycles25
Insulation Resistance Adjacent Poles> 5 MΩ
Climate Essay
Test SpecificationDIN EN ISO 6988:1997-03
Corrosion fatigue0.2 dm3UNDER2in 300 dm3/40 °C/1 cycle
Thermal stress100 °C/168 h
Bearable AC voltage2.21 kV
Environmental conditions
Ambient Temperature (Service)-40 °C ... 100 °C (depending on the rating curve)
Ambient Temperature (Storage/Transport)-40 °C ... 70 °C
Relative humidity of the air (storage/transport)30 % ... 70 %
Ambient Temperature (Mounting)-5 °C ... 100 °C
Packaging Information
Type of packagingBoxed Packaging

ETIM for 1107408 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 5 mm
Modular spacing connections (EF006827) 5 mm
Rated current In (EF008250) 12 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.3 mm
Length pin (EF006825) 3.5 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Red
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Carton (for SMD)
