> PHOENIX CONTACT > PCB Connectors (PCC) > 1804770

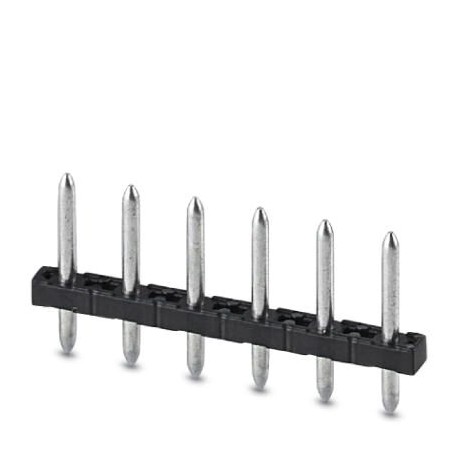

PHOENIX CONTACT PST 1,3/ 3-5,0 L15,5 PST 1,3/ 3-5,0 L15,5 1804770 PHOENIX CONTACT Pin strip, nominal current: 12 A, rated voltage (III/2): 320 V,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PST 1,3/ 3-5,0 L15,5 1804770 PHOENIX CONTACT Pin strip, nominal current: 12 A, rated voltage (III/2): 320 V,..

PST 1,3/ 3-5,0 L15,5

1804770

PHOENIX CONTACT

50 Pcs.

Pin strip, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 3, pitch: 5 mm, color: black, contact surface: Tin, mounting: THR soldering, The maximum current depends on the plug used. The lower of the two current values apply for plug and pin strip. The pin strip is made of highly temperature resistant plastic and is thus suitable for the reflow process. Male connector, nominal section: 1.5 mm², colour: black, rated current: 12 A (Depending on the connector used), sizing voltage (III/2): 320 V, surface contacts: Tin, contact type: Male, Number of potentials: 3, Number of rows: 1, Number of poles per row: 3, number of connections: 3, article family: PST 1.3/.. -V, pitch: 5 mm, mounting: WELDING THR, pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, Stecksystem: COMBICON COMPACT PST1.3, Locking: without, type of packaging: boxed packaging, Maximum current depends on the connector used. Of the two current values, the lowest value for the connector and the male connector is decisive. The male connector is made of high temperature resistant plastic, making it suitable for the reflow welding process. Pin strip, nominal current: 12 A, rated voltage (III/2): 320 V, nominal cross section: 1.5 mm², number of positions: 3, pitch: 5 mm, color: black, contact surface: Tin, mounting: THR soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, The maximum current depends on the plug used. The lower of the two current values apply for plug and pin strip. The pin strip is made of highly temperature resistant plastic and is thus suitable for the reflow process.

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1804770
Packing unit1 pc
Minimum order quantity50 pc
GTIN4046356668842
Weight per Piece (excluding packing)0.036 g
Custom tariff number85366930
Country of originDE (Germany)

Drawings

Diagram

Diagram
Type: PTS 1,5/...-PH-5,0 CLIP with PST 1,3/...-5,0

Diagram

Diagram
Derating diagram for conductor cross section 2.5 mm²; reduction factor = 0.8

Diagram

Diagram
Type: PTS 1,5/...-PH-5,0 with PST 1,3/...-5,0

Back to top

Dimensions

Length [ l ]2.8 mm
Width14.6 mm
Pitch5 mm
Dimension a10 mm
Width [ w ]14.6 mm
Height [ h ]15.5 mm
Height12 mm
Length of the solder pin3.5 mm
Pin dimensionsø 1.3 mm
Length2.8 mm
Back to top

General

Range of articlesPST 1,3/..-V
Rated voltage (III/3)250 V
Connection in acc. with standardEN-VDE
Nominal current IN12 A
Colorblack
Number of positions3
Back to top

Standards and Regulations

Connection in acc. with standardEN-VDE
Back to top

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Back to top

Classifications

eCl@ss

eCl@ss 4.027260700
eCl@ss 4.127260700
eCl@ss 5.027260700
eCl@ss 5.127260700
eCl@ss 6.027260700
eCl@ss 7.027440402
eCl@ss 8.027440402
eCl@ss 9.027440402
Back to top

ETIM

ETIM 3.0EC001121
ETIM 4.0EC002637
ETIM 5.0EC002637
ETIM 6.0EC002637
ETIM 7.0EC002637
Back to top

UNSPSC

UNSPSC 6.0130211810
UNSPSC 7.090139121409
UNSPSC 1139121409
UNSPSC 12.0139121409
UNSPSC 13.239121409
UNSPSC 18.039121409
UNSPSC 19.039121409
UNSPSC 20.039121409
UNSPSC 21.039121409
Back to top

ETIM for 1804770 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 3
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 5 mm
Modular spacing connections (EF006827) 5 mm
Rated current In (EF008250) 12 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.3 mm
Length pin (EF006825) 3.5 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Carton (for SMD)
