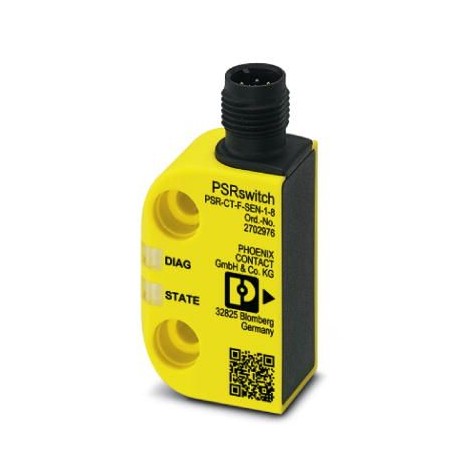

PSR-CT-F-SEN-1-8 2702976 PHOENIX CONTACT Safety switch sensor

PSR-CT-F-SEN-1-8

2702976

PHOENIX CONTACT

1 Pcs.

Safety switch sensor Non-contact safety switch up to cat. 4, PL e (EN ISO 13849), SIL 3 (IEC 61508), RFID-coded Fixcode sensor, construction type 4 (EN ISO 14119), manual or automatic start, integrated diagnostics, 24 V DC supply, IP69K, M12 connector

Automation > Accessories/spare parts for sensor technology
Safety

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2702976
Packing unit1 pc
GTIN4055626447032
Weight per Piece (excluding packing)41.300 g
Custom tariff number85365019
Country of originDE (Germany)

Dimensions

Dimensional drawing
Width26.5 mm
Height40 mm
Depth18 mm

Ambient conditions

Ambient temperature (operation)-25 °C ... 55 °C
Ambient temperature (storage/transport)-40 °C ... 70 °C

Power supply

Supply voltage24 V DC ±15 % (PELV, controlled, residual ripple
Current consumptionmax. 40 mA
Protectionmin. 0.25 A (to be performed externally)
max. 8 A (to be performed externally)

Alarm outputs

DesignationDGN
Output descriptionp-wired
Number of outputs1
Short-circuit-proofyes
Output voltagemin. (UB- 1.5 V (HIGH))
max. (UB(HIGH))
min. 0 V DC (LOW)
max. 1 V DC (LOW)
Current IDGNmin. 1 mA

Safety outputs

DesignationFO1A, FO1B
Output descriptionSemiconductor outputs, p-wired
Number of outputs2
Output voltagemin. (UB- 1.5 V (HIGH FO1A, FO1B))
max. (UB(HIGH FO1A, FO1B))
min. 0 V DC (LOW FO1A/FO1B)
max. 1 V DC (LOW FO1A/FO1B)
Switching currentmin. 1 mA (per safety output)
max. 150 mA (per safety output)
Short-circuit-proofyes
Utilization category in accordance with IEC 60947-5-2150 mA (24 V (DC13))
Note on protection circuitNOTE: Protect the outputs under inductive loads with a freewheeling diode.
Residual current≤ 0.25 mA

Times

Switch-on delaytyp. 5 s (after switching UBon)
Risk time according to EN 60947-5-3max. 260 ms (Stand-alone device)
Delay timetyp. 5 ms (Risk time delay per device)
Switch-on timemax. 400 ms (for the safety outputs)
Discrepancy timemax. 10 ms (between the safety outputs)
Test pulsestyp. 300 µs (Test pulse duration)
approx. 100 ms (Test pulse interval)

General

Net weight41.3 g
Mounting positionany
Mounting typenot flush
Minimum distance140 mm (between two safety circuits)
7 mm (between sensor and actuator when traveling in the Y-direction)
Assembly instructionsNote EN ISO 14119
Maximum tightening torque to secure: 0.8 Nm
Degree of protectionIP65/IP67/IP69/IP69K
IP67 (with SAC cabling)
Protection classIII
Short-circuit currenttyp. 100 A (conditional short-circuit current)
Switching frequencymax. 1 Hz
Housing materialPBT
Housing coloryellow
Status display2 LEDs

Connection data

Connection methodConnector
Connection technologyM12 connector
pluggableno
Number of positions8

Safety-related characteristic data

DesignationIEC 61508 - High demand
Safety Integrity Level (SIL)3
DesignationEN ISO 13849
Performance level (PL)e
Category4

Standards and Regulations

Rated insulation voltagemax. 300 V
Rated surge voltagemax. 1.5 kV
Degree of pollution3
Vibration (operation)in accordance with EN 60947-5-2
EMC conformanceEN 60947-5-3

Classifications


ETIM for 2702976 Sensors (EC003015)
Feature Name Feature Value
Type of accessory/spare part (EF000215) Other
Accessory (EF013236) No
Spare part (EF013237) No

Product Datasheet
