View larger
Images are for illustrative purposes only. Please refer to data sheet for details

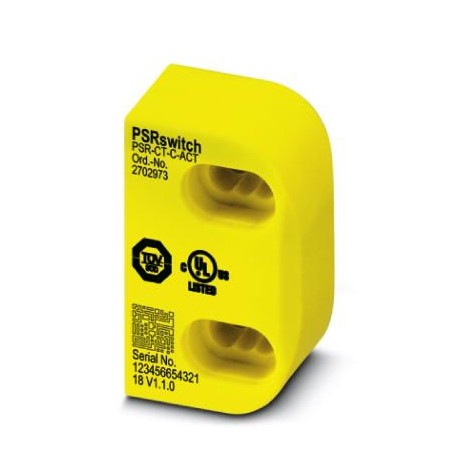

PSR-CT-C-ACT 2702973 PHOENIX CONTACT Safety switch actuator
PSR-CT-C-ACT
2702973
PHOENIX CONTACT
1 Pcs.
Safety switch actuator
Non-contact safety switch up to cat. 4, PL e (EN ISO 13849), SIL 3 (IEC 61508), encoded trigger, compatible with any type of sensor coding, inductive supply via sensor, IP69K
Automation > Accessories/spare parts for sensor technology
Safety
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2702973 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626447001 |
| Weight per Piece (excluding packing) | 41.000 g |
| Custom tariff number | 85365019 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 55 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
General
| Net weight | 41 g |
|---|---|
| Mounting position | active surface across from sensor |
| Mounting type | not flush |
| Minimum distance | 140 mm (between two safety circuits) |
| 7 mm (between sensor and actuator when traveling in the Y-direction) | |
| Assembly instructions | Note EN ISO 14119 |
| Maximum tightening torque to secure: 0.8 Nm | |
| Degree of protection | IP65/IP67/IP69/IP69K |
| Power supply | inductively, via the sensor |
| Housing material | PBT |
| Housing color | yellow |
Safety-related characteristic data
| Designation | IEC 61508 - High demand |
|---|---|
| Safety Integrity Level (SIL) | 3 |
| Designation | EN ISO 13849 |
| Performance level (PL) | e |
| Category | 4 |
Classifications
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Other |
| Accessory (EF013236) | No |
| Spare part (EF013237) | No |
