View larger
Images are for illustrative purposes only. Please refer to data sheet for details

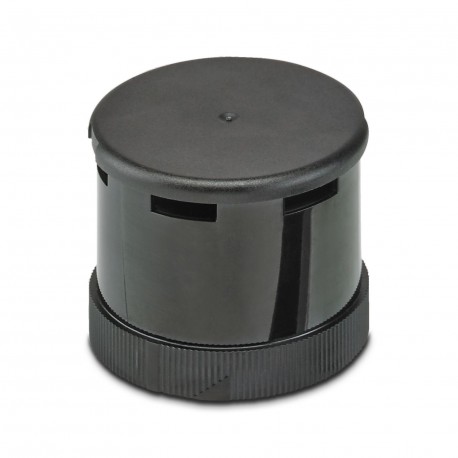

PSD-S AE SM2-7 105DB/1 2702998 PHOENIX CONTACT Acoustic element
PSD-S AE SM2-7 105DB/1
2702998
PHOENIX CONTACT
1 Pcs.
Acoustic element
Siren element, 24 V AC/DC, max. 105 db(A), constant and alternating tone
Siren element, 24 V AC/DC, max. 105 db(A), continuous tone and alternating continuous tone
Automation > Acoustic module for signal tower
Control Systems (CST)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| Note on application | |
| Note on application | Only for industrial use |
Product properties
| Product type | Acoustic element |
| Data management status | |
| Article revision | 00 |
Electrical properties
| Maximum power dissipation for nominal condition | 0.96 W |
| General | |
| Input voltage | 24 V AC/DC ±10 % |
| Nominal input voltage range | 21.6 V AC/DC ... 26.4 V AC/DC |
| Maximum inrush current | max. 100 mA |
| Current consumption | 40 mA |
| Operating time | 100 % |
| Service life electrical | min. 5,000 h |
| Type of acoustic signal | Continuous tone |
| Alternating continuous tone | |
| Tone frequency | approx. 3 kHz |
| Volume | max. 105 dB |
Dimensions
| Dimensional drawing |  |
| Height | 54 mm |
| Diameter | 70 mm |
Material specifications
| Color | black |
| Material | Polycarbonate PC |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP65, when installed |
| Ambient temperature (operation) | -30 °C ... 50 °C |
EMC data
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Mounting
| Mounting position | any |
| Feature Name | Feature Value |
|---|---|
| Outer diameter (EF000015) | 70 mm |
| Colour (EF000007) | Black |
| Operating voltage DC (EF008208) | 21.6 V |
| Voltage type (EF000187) | AC/DC |
| Degree of protection (IP) (EF005474) | IP65 |
| Loudness (EF000144) | 105 dB |
