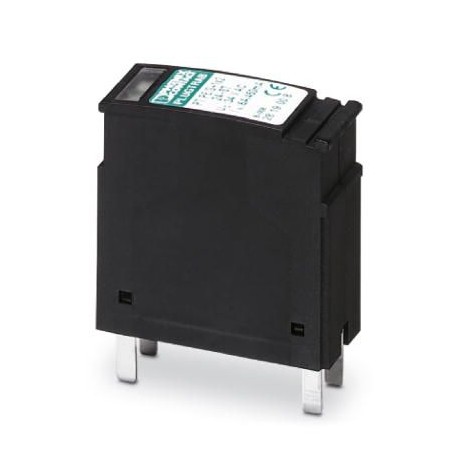

PT PE/S+1X2-24-ST 2819008 PHOENIX CONTACT Surge protection plug
PT PE/S+1X2-24-ST
2819008
PHOENIX CONTACT
1 Pcs.
Surge protection plug
PT plug-in protection with device protection against overvoltages for power supplies, optical fault indication, nominal voltage: 24 V and a two-conductor signal circuit without earth potential, nominal voltage: 24 V.
Automation > Combined arrester for data networks/MCR-technology
Trabtech (TT)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2819008 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 99 (C-4-2017) |
| GTIN | 4017918819323 |
| Weight per Piece (excluding packing) | 25.830 g |
| Custom tariff number | 85363010 |
| Country of origin | DE (Germany) |
Dimensions
| Height | 44.8 mm |
|---|---|
| Width | 17.5 mm |
| Depth | 51.7 mm |
| Horizontal pitch | 1 Div. |
| Complete module height | 90 mm |
| Complete module width | 17.7 mm |
| Complete module depth | 65.5 mm |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 85 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
General
| Housing material | PA 6.6 |
|---|---|
| Flammability rating according to UL 94 | V-0 |
| Color | jet black RAL 9005 |
| Mounting type | on base element |
| Type | Male |
| Current supply arrester can be tested with CHECKMASTER starting with software version: | From SW rev. 1.00 |
| Direction of action | L-N-PE & Signal Line-Signal Line-Earth Ground |
Protective circuit, power supply
| EN type | T3 |
|---|---|
| Arrester rated voltage UC | 34 V AC |
| 44 V DC | |
| Nominal frequency fN | 50 Hz (60 Hz) |
| Rated load current IL | 6 A (30 °C) |
| Operating effective current ICat UC | ≤ 1.5 mA |
| Residual current IPE | ≤ 5 µA |
| Nominal discharge current In(8/20) µs | 700 A |
| Max. discharge current Imax(8/20) µs | 2 kA |
| Combination wave UOC | 2 kV |
| Voltage protection level Up(L-N) | ≤ 0.18 kV |
| Voltage protection level Up(L-PE) | ≤ 0.55 kV |
| Response time (L-N) | ≤ 25 ns |
| Response time (L-PE) | ≤ 100 ns |
| Surge protection fault message | optical |
Connection (protective circuit, power supply)
| Connection method | Screw connection (in connection with the base element) |
|---|---|
| Connection method IN | PLUGTRAB plug-in system |
| Connection method OUT | PLUGTRAB plug-in system |
| Screw thread | M3 |
| Stripping length | 8 mm |
Protective circuit, information technology
| Nominal voltage UN | 24 V AC |
|---|---|
| Arrester rated voltage UC | 40 V DC |
| 28 V AC | |
| Rated current | 450 mA (45°C) |
| Operating effective current ICat UC | ≤ 5 µA |
| Residual current IPE | ≤ 2 µA |
| Nominal discharge current In(8/20) µs (line-line) | 10 kA |
| Nominal discharge current In(8/20) µs (line-earth) | 10 kA |
| Max. discharge current Imax(8/20) µs maximum (line-line) | 10 kA |
| Max. discharge current Imax(8/20) µs maximum (line-earth) | 20 kA (in total) |
| Voltage protection level Up(line-line) | ≤ 80 V (C2 - 10 kV / 5 kA) |
| Voltage protection level Up(line-earth) | ≤ 450 V (C2 - 10 kV / 5 kA) |
| Response time tA(line-line) | ≤ 1 ns |
| Response time tA(line-earth) | ≤ 100 ns |
| Input attenuation aE, sym. | typ. 0.5 dB (≤ 1.5 MHz / 50 Ω) |
| typ. 0.2 dB (≤ 500 kHz / 150 Ω) | |
| typ. 0.1 dB (≤ 100 kHz / 600 Ω) | |
| Cut-off frequency fg (3 dB), sym. in 50 Ohm system | typ. 8 MHz |
| Cut-off frequency fg (3 dB), sym. in 150 Ohm system | typ. 3 MHz |
| Cut-off frequency fg (3 dB), sym. in 600 Ohm system | typ. 800 kHz |
| Capacity (line-line) | typ. 1.1 nF |
| Capacity (line-earth) | typ. 4 pF |
| Resistance in series | 2.2 Ω ±10 % |
| Surge protection fault message | Optical, remote indicator contact |
| Output voltage limitation at 1 kV/µs (wire-wire) | ≤ 55 V |
| Output voltage limitation at 1 kV/µs (wire-earth) | ≤ 25 V |
| Residual voltage at In(line-line) | ≤ 55 V |
| Residual voltage with Ian (10/1000) µs (line-line) | ≤ 65 V |
| Impulse durability (line-line) | C2 - 10 kV/5 kA |
| C3 - 23 A | |
| Impulse durability (line-earth) | C2 - 10 kV/5 kA |
| D1 - 2.5 kA |
Power supply, general
| Connection method | Screw connection (in connection with the base element) |
|---|---|
| Connection method IN | PLUGTRAB plug-in system |
| Connection method OUT | PLUGTRAB plug-in system |
| Screw thread | M3 |
| Stripping length | 8 mm |
