View larger
Images are for illustrative purposes only. Please refer to data sheet for details

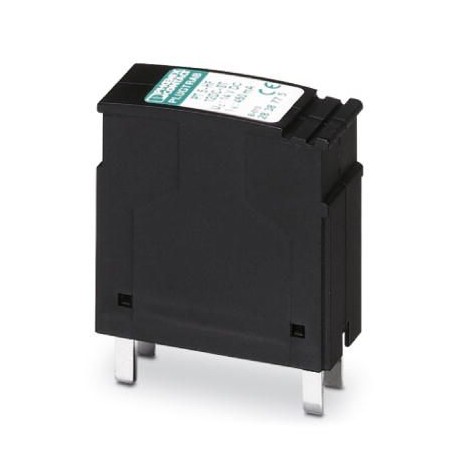

PT 5-HF-12 DC-ST 2838775 PHOENIX CONTACT Surge protection plug
PT 5-HF-12 DC-ST
2838775
PHOENIX CONTACT
1 Pcs.
Surge protection plug
PT plug-in protection with HF (high frequency) protection circuit for 4 signal conductors. Rated voltage: 12 V DC
Automation > Surge protection device for data networks/MCR-technology
Trabtech (TT)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2838775 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 147 (C-4-2017) |
| GTIN | 4017918480646 |
| Weight per Piece (excluding packing) | 25.600 g |
| Custom tariff number | 85363010 |
| Country of origin | DE (Germany) |
Dimensions
| Height | 45 mm |
|---|---|
| Width | 17.7 mm |
| Depth | 52 mm |
| Horizontal pitch | 1 Div. |
| Complete module height | 90 mm |
| Complete module width | 17.7 mm |
| Complete module depth | 65.5 mm |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 85 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | ≤ 2000 m (amsl (above mean sea level)) |
| Degree of protection | IP20 |
General
| Housing material | PA 6.6 |
|---|---|
| Flammability rating according to UL 94 | V-0 |
| Color | jet black RAL 9005 |
| Overvoltage category | III |
| Degree of pollution | 2 |
| Mounting type | on base element |
| Type | Male |
| Number of positions | 5 |
| Direction of action | Line-Line & Line-Signal Ground/Shield & optional Signal Ground/Shield-Earth Ground |
| Arrester can be tested with CHECKMASTER from software version: | From SW rev. 1.10 |
Protective circuit
| IEC test classification | C1 |
|---|---|
| C2 | |
| C3 | |
| D1 | |
| Nominal voltage UN | 12 V DC |
| Maximum continuous voltage UC | 14 V DC |
| 9.8 V AC | |
| Rated current | 450 mA (45°C) |
| Operating effective current ICat UC | ≤ 5 µA |
| Residual current IPE | ≤ 5 µA (with PT 2X2-BE) |
| ≤ 1 µA (with PT 2X2+F-BE) | |
| Nominal discharge current In(8/20) µs (line-line) | 10 kA |
| Nominal discharge current In(8/20) µs (line-earth) | 20 kA (in total) |
| Pulse discharge current Iimp(10/350) µs | 2.5 kA |
| Total discharge current Itotal(8/20) µs | 20 kA |
| Max. discharge current Imax(8/20) µs maximum (line-line) | 10 kA |
| Max. discharge current Imax(8/20) µs maximum (line-earth) | 20 kA (in total) |
| Nominal pulse current Ian (10/1000) µs (line-line) | 67 A |
| Output voltage limitation at 1 kV/µs (line-line) spike | ≤ 55 V |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 55 V (with PT 2X2-BE) |
| ≤ 700 V (with PT 2X2+F-BE) | |
| Output voltage limitation at 1 kV/µs (line-line) static | ≤ 25 V |
| Output voltage limitation at 1 kV/µs (line-earth) static | ≤ 25 V (with PT 2X2-BE) |
| ≤ 40 V (with PT 2X2+F-BE) | |
| Residual voltage at In(line-line) | ≤ 25 V |
| Residual voltage at In(line-earth) | ≤ 40 V (with PT 2X2-BE) |
| Residual voltage at In(line-signalground) | ≤ 25 V (with PT 2X2-BE) |
| Residual voltage with Ian (10/1000) µs (line-line) | ≤ 25 V |
| Residual voltage with Ian (10/1000) µs (line-signalground) | ≤ 25 V |
| Voltage protection level Up(line-line) | ≤ 80 V (C1 - 1 kV/500 A) |
| ≤ 100 V (C2 - 10 kV / 5 kA) | |
| ≤ 50 V (C3 - 25 A) | |
| ≤ 80 V (6 kV / 3 kA) | |
| Voltage protection level Up(line-earth) | ≤ 85 V (C1 - 1 kV / 500 A with PT 2X2-BE) |
| ≤ 140 V (C2 - 10 kV / 5 kA with PT 2X2-BE) | |
| ≤ 100 V (6 kV / 3 kA with PT 2X2-BE) | |
| ≤ 50 V (C3 - 25 A with PT 2X2-BE) | |
| Voltage protection level Up(line-signalground) | ≤ 50 V (C3 - 25 A with PT 2X2-BE) |
| ≤ 140 V (C2 - 10 kV / 5 kA with PT 2X2-BE) | |
| Voltage protection level Upstatic (line-line) | ≤ 25 V (C2 - 10 kV / 5 kA) |
| ≤ 27 V (C3 - 25 A) | |
| Voltage protection level Upstatic (line-earth) | ≤ 45 V (C2 - 10 kV / 5 kA with PT 2X2-BE) |
| ≤ 27 V (C3 - 25 A with PT 2X2-BE) | |
| Voltage protection level Upstatic (line-signalground) | ≤ 25 V (C2 - 10 kV / 5 kA with PT 2X2-BE) |
| ≤ 27 V (C3 - 25 A) | |
| Response time tA | ≤ 500 ns |
| Input attenuation aE, sym. | typ. 0.3 dB (≤ 5 MHz / 100 Ω) |
| Cut-off frequency fg (3 dB), sym. in 100 Ohm system | typ. 60 MHz |
| Capacity (line-line) | typ. 30 pF |
| Resistance in series | 2.2 Ω ±10 % |
| Surge protection fault message | none |
| Max. required back-up fuse | 500 mA (T) |
| Impulse durability (line-line) | C2 - 10 kV/5 kA |
| C3 - 67 A | |
| Impulse durability (line-earth) | C2 - 10 kV/5 kA |
| C3 - 67 A | |
| D1 - 2.5 kA |
Connection data
| Connection method | Screw connection (in connection with the base element) |
|---|---|
| Screw thread | M3 |
| Tightening torque | 0.8 Nm |
| Stripping length | 8 mm |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section AWG | 24 ... 12 |
Classifications
eCl@ss 4.027140201eCl@ss 4.127130801eCl@ss 5.027130801eCl@ss 5.127130800eCl@ss 6.027130800eCl@ss 7.027130807eCl@ss 8.027130807eCl@ss 9.027130807
| Feature Name | Feature Value |
|---|---|
| Nominal voltage AC (EF008798) | 12 V |
