View larger
Images are for illustrative purposes only. Please refer to data sheet for details

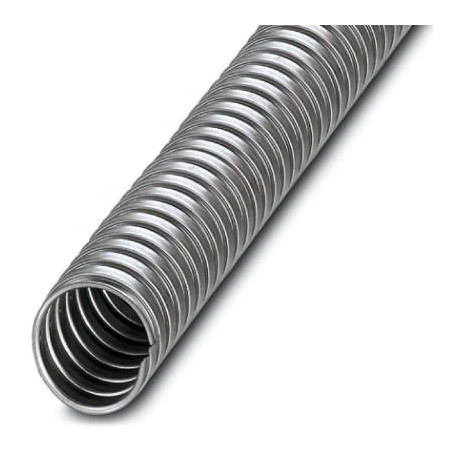

WP-STEEL ZC 27 3240866 PHOENIX CONTACT Protective hose
WP-STEEL ZC 27
3240866
PHOENIX CONTACT
10 Pcs.
Protective hose
Protection tube, material: Steel, galvanized, protection index: IP40, color: silver, inner diameter: 23 mm, Total length: 10 m
Automation > Protective metallic hose
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3240866 |
|---|---|
| Packing unit | 10 M |
| Minimum order quantity | 10 M |
| Catalog page | Page 640 (C-3-2017) |
| GTIN | 4046356738606 |
| Weight per Piece (excluding packing) | 99.990 g |
| Custom tariff number | 83071000 |
| Country of origin | DE (Germany) |
General
| Color | silver |
|---|---|
| Type | Spirals |
| Components | halogen-free |
| Material | Steel, galvanized |
| Bending radius, static | 48 mm |
| Bending radius, dynamic | 120 mm |
| Tensile strength | 500 N |
Classifications
eCl@ss 4.027141131eCl@ss 4.127141131eCl@ss 5.027141131eCl@ss 5.127140900eCl@ss 6.027140900eCl@ss 7.027430301eCl@ss 8.027430301eCl@ss 9.027430301
| Feature Name | Feature Value |
|---|---|
| Nominal diameter (EF005114) | 23 mm |
| Outer diameter (EF000015) | 27 mm |
| Inner diameter (EF000065) | 23 mm |
| Surface protection (EF000139) | Galvanised |
| Sheathing material 1st coating (EF003660) | Other |
| Sheathing material 2nd coating (exterior) (EF003661) | Other |
| Operating temperature (EF001742) | -50 °C |
| Degree of protection (IP) (EF005474) | IP40 |
| Tensile strength (EF002782) | 500 N |
| Bending radius, static (EF001744) | 48 mm |
| Colour (EF000007) | Other |
| Flame accelerating (EF001746) | No |
| Suitable for EX-applications (EF001779) | No |
| With approval according to UL (EF001783) | No |
