View larger
Images are for illustrative purposes only. Please refer to data sheet for details

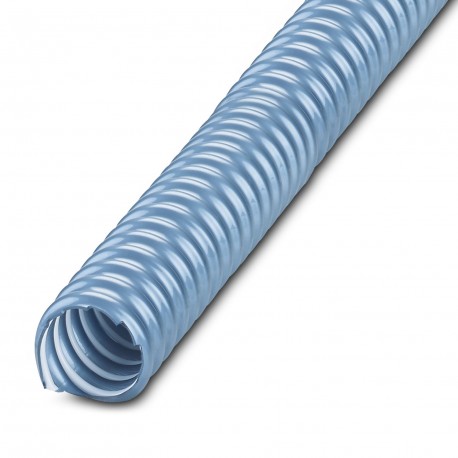

WP-SPIRAL PU C HF 36 3240861 PHOENIX CONTACT Protective hose
WP-SPIRAL PU C HF 36
3240861
PHOENIX CONTACT
10 Pcs.
Protective hose
Protective tube, material: PU, spiral: Spring steel with PUR coating, UV resistant: no, flexible, protection index: IP68, color: blue, flammability class according to UL94: V2, inner diameter: 29 mm, Total length: 10 m
Protective hose, material: PU, filament: PUR sheathed spring steel, UV-resistant: no, flexible, degree of protection: IP68, color: blue, flammability rating in acc. with UL 94: V2, inner diameter: 29 mm, Total length: 10 m
Automation > Protective plastic hose
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| Notes on operation | Protective hose length is measured stretched out; length tolerance ±5% |
Product properties
| Product type | Protective hose |
| Tensile strength GRP | 100 N |
| Data management status | |
| Article revision | 00 |
Dimensions
| External dimensions | |
| Outside diameter | 36 mm |
| Internal dimensions | |
| Internal diameter | 29 mm |
Material specifications
| Material | PU |
| Material Coil | PUR (sheathed spring steel) |
| Flammability rating according to UL 94 | V2 |
| Components | free from silicone, halogen, and cadmium |
Cable/line
| Bending radius, dynamic | 65 mm |
| Bending radius, static | 25 mm |
| Tensile strength | 100 N |
| Halogen-free | yes |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP68 |
| Ambient temperature (operation) | -40 °C ... 100 °C |
| Resistance to UV radiation | no |
| Short-term temperature | 120 °C |
| Feature Name | Feature Value |
|---|---|
| Nominal diameter (EF005114) | 36 mm |
| Outer diameter (EF000015) | 36 mm |
| Inner diameter (EF000065) | 29 mm |
| Material (EF002169) | Other |
| Material filament (EF001768) | Other |
| Operating temperature (EF001742) | -40 °C |
| Degree of protection (IP) (EF005474) | IP68 |
| Tensile strength (EF002782) | 100 N |
| Bending radius, static (EF001744) | 25 mm |
| Halogen free (EF000025) | Yes |
| Plain interior (EF001769) | No |
| Plain exterior (EF002479) | No |
| Flexibility (EF001770) | Flexible |
| Colour (EF000007) | Blue |
| Approved according to DIN EN 61386-23 (EF008144) | No |
| Approved according to UR (EF001772) | No |
| Approved according to N (EF001773) | No |
| Approved according to CSA (EF001784) | No |
