View larger
Images are for illustrative purposes only. Please refer to data sheet for details

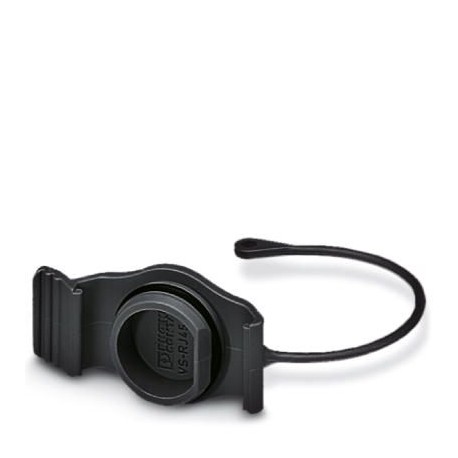

VS-08-SD-F-BK 1658066 PHOENIX CONTACT Protective covers
VS-08-SD-F-BK
1658066
PHOENIX CONTACT
5 Pcs.
Protective covers
Protective cover, IP67, flat design, flat design, to cover the contact insert in the recessed frame, colour: black
Connectors > Cap for industrial connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1658066 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 355 (C-2-2017) |
| GTIN | 4046356144315 |
| Weight per Piece (excluding packing) | 3.400 g |
| Custom tariff number | 39269097 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Connection profile | RJ45 |
|---|---|
| Locking type | without |
| Color | black |
| Degree of protection | IP67 |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 80 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 55 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Housing material | PA |
| Material | Plastic |
| Sealing material | EDPM, self-greasing |
| Seal material | EDPM, self-greasing |
| Height | 10 mm |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027141210eCl@ss 4.127141210eCl@ss 5.027149110eCl@ss 5.127149100eCl@ss 6.027261200eCl@ss 7.027440208eCl@ss 8.027440208eCl@ss 9.027440208
| Feature Name | Feature Value |
|---|---|
| Type of locking (EF000208) | None |
| With sealing (EF005610) | No |
| With captivity element (EF012222) | No |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Ambient temperature (EF002386) | 80 °C |
