View larger
Images are for illustrative purposes only. Please refer to data sheet for details

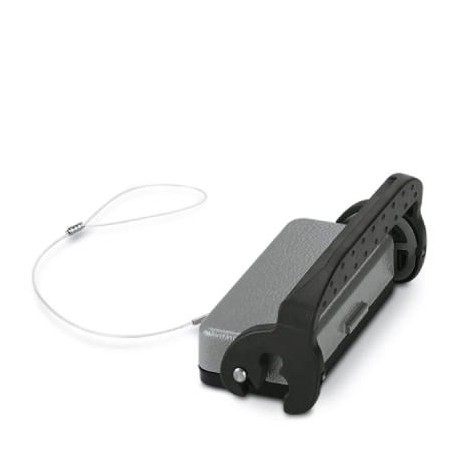

HC-B 16-SD-MLT/FS-AL 1584525 PHOENIX CONTACT Protective covers
HC-B 16-SD-MLT/FS-AL
1584525
PHOENIX CONTACT
10 Pcs.
Protective covers
B16 protective cap, with longitudinal flange, protective cap material: Al, height: 20 mm, seal: yes, retaining cord ring diameter: 30 mm, with lashing cord
Connectors > Cap for industrial connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1584525 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 654 (C-2-2017) |
| GTIN | 4046356145190 |
| Weight per Piece (excluding packing) | 112.700 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
General
| Size | B16 |
|---|---|
| Type | for sleeve housing without single locking latch |
| Material | Aluminum, die-cast |
| Seal material | NBR |
| Locking latch material | High-grade steel, handle: PA-GF |
| Color | gray |
| Seal present | yes |
| Connection | The guide pins of the protective cover must be removed when using coding sockets, pins, and bolts. |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
