View larger
Images are for illustrative purposes only. Please refer to data sheet for details

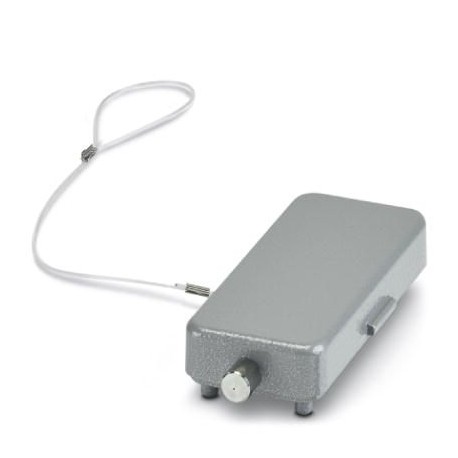

HC-B 16-SD-FLU/FS-AL 1644588 PHOENIX CONTACT Protective covers
HC-B 16-SD-FLU/FS-AL
1644588
PHOENIX CONTACT
1 Pcs.
Protective covers
B16 protective cap, for longitudinal flange, protective cap material: Al, height: 16 mm, seal: no, retaining cord ring diameter: 30 mm, with lashing cord
Connectors > Cap for industrial connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1644588 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 655 (C-2-2017) |
| GTIN | 4017918904906 |
| Weight per Piece (excluding packing) | 80.450 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
General
| Size | B16 |
|---|---|
| Type | For supporting base element with single locking latch |
| Material | Aluminum, die-cast |
| Color | gray |
| Seal present | no |
| Connection | The guide pins of the protective cover must be removed when using coding sockets, pins, and bolts. |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
