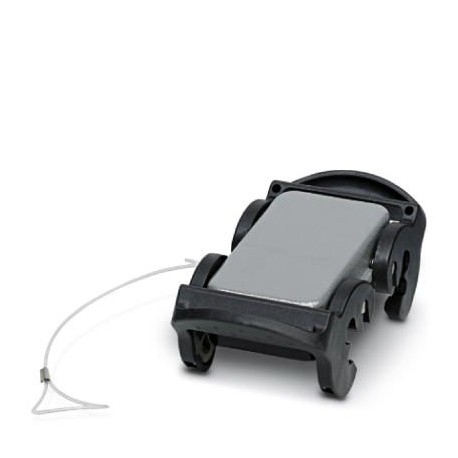

HC-B 10-SD-MQT/FS-AL 1584541 PHOENIX CONTACT Protective covers
HC-B 10-SD-MQT/FS-AL
1584541
PHOENIX CONTACT
10 Pcs.
Protective covers
B10 protective cap, with cross flange, protective cover material: Al, height: 16.9 mm, seal: yes, retaining cord ring diameter: 30 mm, with mooring cord
Connectors > Cap for industrial connectors
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1584541 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 654 (C-2-2017) |
| GTIN | 4046356144131 |
| Weight per Piece (excluding packing) | 100.000 g |
| Custom tariff number | 85389099 |
| Country of origin | DE (Germany) |
General
| Size | B10 |
|---|---|
| Type | for sleeve housing without double locking latch |
| Material | Aluminum, die-cast |
| Seal material | NBR |
| Locking latch material | High-grade steel, handle: PA-GF |
| Color | gray |
| Seal present | yes |
| Assembly instructions | Not for HC-B...EMC housings |
| Connection | The guide pins of the protective cover must be removed when using coding sockets, pins, and bolts. |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
