View larger
Images are for illustrative purposes only. Please refer to data sheet for details

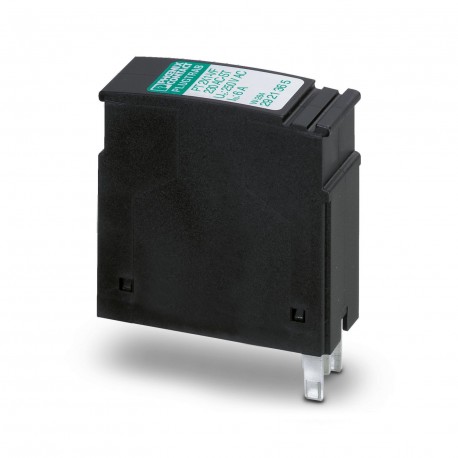

PT 2X1-VF-230AC-ST 2921365 PHOENIX CONTACT Surge protection plug
PT 2X1-VF-230AC-ST
2921365
PHOENIX CONTACT
1 Pcs.
Surge protection plug
Plug-in protection with leakage current-proof protection circuit for two signals without earth potential. Series circuit consisting of varistor and a gas-filled surge arrester between the signal and ground conductors.
Protective connector with protective circuit free of leakage current for two floating signals. Connection in series, consisting of varistor and gas-filled surge arrester between signal wires and ground.
Automation > Surge protection device for data networks/MCR-technology
Trabtech (TT)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Surge protection for MCR technology |
| Product family | PLUGTRAB PT |
| IEC test classification | C1 |
| C2 | |
| C3 | |
| D1 | |
| Type | Male |
| Number of positions | 2 |
| Surge protection fault message | none |
| Data management status | |
| Article revision | 08 |
Electrical properties
| Nominal voltage UN | 230 V AC |
| Indicator/remote signaling | |
| Switching function | N/C contact |
Connection data
| Connection method | Screw connection (in connection with the base element) |
| Screw thread | M3 |
| Tightening torque | 0.8 Nm |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section AWG | 24 ... 12 |
Dimensions
| Dimensional drawing |  |
| Width | 17.5 mm |
| Height | 44.8 mm |
| Depth | 51.7 mm |
| Horizontal pitch | 1 Div. |
| Complete module width | 17.7 mm |
| Complete module height | 90 mm |
| Complete module depth | 65.5 mm |
Material specifications
| Color | black (RAL 9005) |
| Flammability rating according to UL 94 | V-0 |
| Housing material | PA 6.6 |
Mechanical properties
| Mechanical data | |
| Open side panel | No |
Protective circuit
| Direction of action | Line-Line & Line-Earth Ground |
| Maximum continuous voltage UC | 250 V AC |
| Rated current | 6 A |
| Operating effective current ICat UC | ≤ 2 µA |
| Residual current IPE | ≤ 2 µA (at UN) |
| Nominal discharge current In(8/20) µs | 3 kA |
| Pulse discharge current Iimp(10/350) µs | 500 A |
| Total discharge current Itotal(8/20) µs | 8 kA |
| Total discharge current Itotal(10/350) µs | 1 kA |
| Max. discharge current Imax(8/20) µs | 8 kA |
| Nominal pulse current Ian (10/1000) µs (line-earth) | 100 A |
| Output voltage limitation at 1 kV/µs (line-earth) static | ≤ 1.4 kV |
| Residual voltage at In(conductor-conductor) | ≤ 2 kV |
| Residual voltage at In(conductor-ground) | ≤ 1 kV |
| Residual voltage with Ian (10/1000) µs (line-line) | ≤ 1.4 kV |
| Residual voltage with Ian (10/1000) µs (line-earth) | ≤ 700 V |
| Max. energy absorption (2 ms) | 150 J |
| Voltage protection level Up(line-line) | ≤ 2.5 kV (C2 - 4 kV / 2 kA) |
| ≤ 1.8 kV (C3 - 100 A) | |
| ≤ 2.6 kV (D1 - 500 A) | |
| Voltage protection level Up(line-earth) | ≤ 1.1 kV (C1 - 500 A) |
| ≤ 1.5 kV (C2 - 4 kV / 2 kA) | |
| ≤ 1.6 kV (C3 - 100 A) | |
| ≤ 1.8 kV (D1 - 500 A) | |
| Response time tA | ≤ 100 ns |
| Capacity (Core-Core) | typ. 1.5 pF |
| Capacity (Core-Earth) | typ. 3 pF |
| Resistance per path | 0 Ω |
| Surge protection fault message | none |
| Max. required back-up fuse | 6 A (gL/gG) |
| Impulse durability (line-earth) | C2 - 4 kV / 2 kA |
| C3 - 100 A | |
| D1 - 500 A |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 80 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | ≤ 2000 m (amsl) |
Standards and regulations
| Standards/specifications | EN 61643-21 |
| Note | 2002 |
Mounting
| Mounting type | on base element |
| Feature Name | Feature Value |
|---|---|
| Nominal voltage DC (EF008799) | 230 V |
