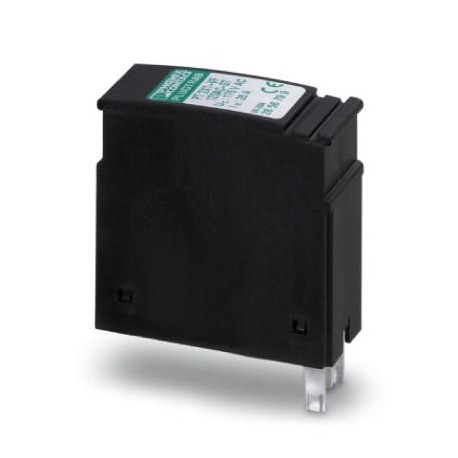

PHOENIX CONTACT PT 2X1-VF-120AC-ST PT 2X1-VF-120AC-ST 2856799 PHOENIX CONTACT Surge protection plug View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PT 2X1-VF-120AC-ST 2856799 PHOENIX CONTACT Surge protection plug

PT 2X1-VF-120AC-ST

2856799

PHOENIX CONTACT

1 Pcs.

Surge protection plug Plug-in protection with leakage current-proof protection circuit for two signals without earth potential. Series circuit consisting of varistor and a gas-filled surge arrester between the signal and ground conductors.

Automation > Surge protection device for data networks/MCR-technology
Trabtech (TT)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2856799
Packing unit10 pc
NoteMade to Order (non-returnable)
Catalog pagePage 114 (C-4-2017)
GTIN4017918974558
Weight per Piece (excluding packing)25.600 g
Custom tariff number85363010
Country of originDE (Germany)

Dimensions

Height44.8 mm
Width17.5 mm
Depth51.7 mm
Horizontal pitch1 Div.
Complete module height90 mm
Complete module width17.7 mm
Complete module depth65.5 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 80 °C
Degree of protectionIP20

General

Housing materialPA 6.6
Flammability rating according to UL 94V-0
Colorblack
Standards for cearances and creepage distancesIEC 60664-1
DIN VDE 0110-1
Overvoltage categoryIII
Degree of pollution2
Mounting typeon base element
TypeMale
Number of positions2
Direction of actionLine-Line & Line-Earth Ground
Arrester can be tested with CHECKMASTER from software version:SW Version 2.13 or later

Protective circuit

IEC test classificationC1
C2
C3
Nominal voltage UN120 V AC
Maximum continuous voltage UC175 V AC
Rated current6 A (with PT BE/FM)
Operating effective current ICat UC≤ 2 µA
Residual current IPE≤ 4 µA
Nominal discharge current In(8/20) µs3 kA
Pulse discharge current Iimp(10/350) µs300 A
Total discharge current Itotal(10/350) µs8 kA
Max. discharge current Imax(8/20) µs8 kA
Nominal pulse current Ian (10/1000) µs (line-earth)40 A
Output voltage limitation at 1 kV/µs (line-earth) static≤ 800 V
Residual voltage at In(line-earth)≤ 600 V
Residual voltage with Ian (10/1000) µs (line-earth)≤ 360 V
Energy absorption85 J
Voltage protection level Up≤ 1 kV (C2 - 2 kA)
Voltage protection level Up(line-earth)≤ 900 V (C1 - 500 A)
≤ 950 V (C2 - 1 kA)
≤ 1 kV (C3 - 25 A)
≤ 1.1 kV (Iimp-300 A)
Response time tA≤ 100 ns
Capacitytyp. 3 pF
Resistance in series0 Ω
Surge protection fault messagenone
Max. required back-up fuse6 A (with PT BE/FM)
Impulse durability (line-earth)C1 - 1 kV/500 A
C2 - 4 kV/2 kA
C3 - 25 A

Connection data

Connection methodScrew connection (in connection with the base element)

Remote indication contact

Switching functionN/C contact
Maximum operating voltage Umax.AC120 V AC
Max. operating current Imax3 A

Standards and Regulations

Standards/regulationsEN 61643-21
IEC 61643-21
Standards/specificationsEN 61643-21 2002

Classifications


ETIM for 2856799 Earthing, lightning and surge protection (EC000943)
Feature Name Feature Value
Nominal voltage DC (EF008799) 120 V
