View larger
Images are for illustrative purposes only. Please refer to data sheet for details

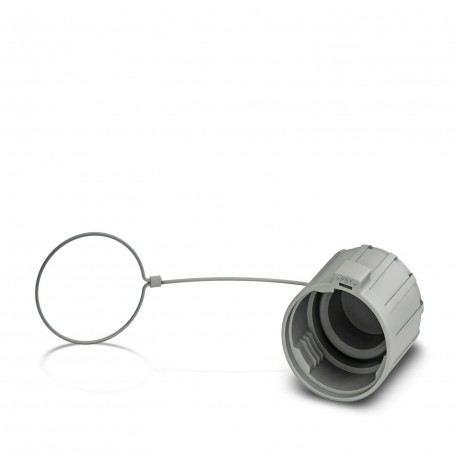

QPD QSK GY 5X2,5 FS 1404526 PHOENIX CONTACT Protective cap
QPD QSK GY 5X2,5 FS
1404526
PHOENIX CONTACT
1 Pcs.
Protective cap
Plastic cap, for QUICKON connection, grey, with retaining cord, IP68
Protective cap, plastic, for QUICKON connection, gray, with retaining cord, IP68
Connectors > Cap for industrial connectors
QUICKON Installation System (QPD)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Protective cap |
| Product family | QPD |
| Type | QPD |
| Retaining cord present | yes |
| Seal present | yes |
Dimensions
| Dimensional drawing |  |
| Width | 34.6 mm |
| Height | 36 mm |
| Length | 34.6 mm |
| Diameter | 33.6 mm (Retaining cord eyelet) |
Material specifications
| Material Protective cap | PBT |
| Flammability rating according to UL 94 | V0 |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP66 |
| IP68 (2 m / 24 h) | |
| IP69K | |
| Ambient temperature (operation) | -40 °C ... 100 °C |
| Ambient temperature (storage/transport) | -40 °C ... 100 °C |
