> PHOENIX CONTACT > QUICKON Installation System (QPD) > 1404528

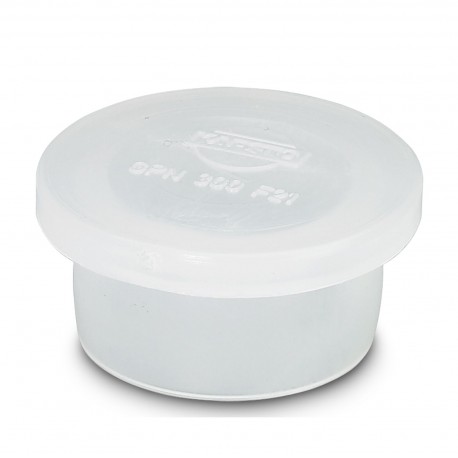

PHOENIX CONTACT QPD QSK 5X2,5 QPD QSK 5X2,5 1404528 PHOENIX CONTACT Protective cap View larger
Images are for illustrative purposes only. Please refer to data sheet for details

QPD QSK 5X2,5 1404528 PHOENIX CONTACT Protective cap

QPD QSK 5X2,5

1404528

PHOENIX CONTACT

1 Pcs.

Protective cap Transparent plastic cap for QPD QUICKON connection 5x 2.5 mm², IP50. Protective cap, transparent plastic, for 5x 2.5 mm2 QPD QUICKON connection, IP50.

Connectors > Cap for industrial connectors
QUICKON Installation System (QPD)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeProtective cap
Product familyQPD
TypeQPD
Retaining cord presentno
Seal presentno
Dimensions
Dimensional drawingsmxcenpsnm.jpg
Width28 mm
Height9.5 mm
Length28 mm
Material specifications
Colortransparent
Material Protective capPlastic
Flammability rating according to UL 94V0
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP50
IP50
Ambient temperature (operation)-40 °C ... 80 °C
Ambient temperature (storage/transport)-40 °C ... 80 °C

ETIM for 1404528 Connectors (EC002314)
Feature Name Feature Value
Type of locking (EF000208) None
With sealing (EF005610) No
With captivity element (EF012222) No
Colour (EF000007) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Ambient temperature (EF002386) 80 °C
Degree of protection (IP), mounted (EF007466) IP50
