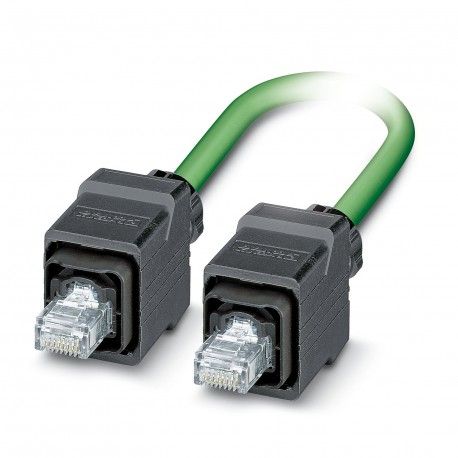

Network cable Ready-made PROFINET cable, CAT5e, shielded, star quadrage, AWG 22 suitable for energy chains (7 wires), RAL 6018 (yellow-green), RJ45/IP67 plug, push-pull, plastic housing, to RJ45/IP67 plug, push-pull, plastic housing, Line, length 5 m Assembled PROFINET cable, CAT5e, shielded, star quad, AWG 22 flexible cable conduit capable (7-wire), RAL 6018 (yellow-green), RJ45 plug/IP67 push-pull plastic housing on RJ45 plug/IP67 push-pull plastic housing, line, length 5 m

Automation > Sensor-actuator patch cord
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeData cable preassembled
Sensor typePROFINET
Number of positions4
Connection profileRJ45 8(4)
No. of cable outlets1
Shieldedyes
Cable outletstraight
Data management status
Article revision10
Insulation characteristics
Overvoltage categoryI
Degree of pollution2
Electrical properties
Transmission mediumCopper
Transmission characteristics (category)CAT5 (IEC 11801:2002)
Transmission speed100 Mbps
Wave impedance100 Ω
Mechanical properties
Mechanical data
Insertion/withdrawal cycles≥ 250
Max. bending cycles3000000
Material specifications
Colorblack
Flammability rating according to UL 94V0
Outer sheath, materialPUR
Conductor materialTin-plated Cu litz wires
Connector
Connection 1
TypePlug straight RJ45
Locking typePush Pull
MaterialPlastic
Degree of protectionIP67
Connection 2
TypePlug straight RJ45
Locking typePush Pull
MaterialPlastic
Degree of protectionIP67
Cable/line
Cable length5.00 m
PROFINET drag chain CAT5 [93C]
Dimensional drawingebkbgtwzch.jpg
Shieldedyes
Cable weight61 kg/km
Cable typePROFINET drag chain CAT5
Short symbol2YH(ST)C11Y
Cable type (abbreviation)93C
Signal type/categoryPROFINET CAT5 (IEC 11801), 100 Mbps
EtherCAT® CAT5 (IEC 11801), 100 Mbps
Cable structure1x4xAWG22/7, SF/TQ
External cable diameter6.50 mm ±0.2 mm
Outer sheath, materialPUR
External sheath, colorgreen RAL 6018
Thickness, outer sheathapprox. 0.90 mm
Material, inner sheathFRNC
Conductor materialTin-plated Cu litz wires
Conductor structure signal line7x 0.25 mm
AWG signal line22
Conductor cross section4x 0.34 mm²
Material wire insulationPE
Wire diameter incl. insulation1.5 mm
Single wire, colorwhite, yellow, blue, orange
Overall twistStar quad
ShieldingAluminum-coated foil, tinned copper braided shield
Optical shield covering85 %
Nominal voltage, cable600 V (UL rating)
Test voltage Core/Core2000 V (50 Hz, 1 min.)
Test voltage Core/Shield2000.00 V (50 Hz, 1 min.)
Cable insulation resistance≥ 500 MΩ*km
Coupling resistance≤ 20.00 mΩ/m (at 10 MHz)
Wave impedance100 Ω ±15 Ω (at 1 ... 100 MHz)
Loop resistance≤ 120.00 Ω/km
Signal runtime5.3 ns/m
Signal speed0.66 c
Tensile strength≤ 150 N
Minimum bending radius, fixed installation5 x D
Minimum bending radius, flexible installation7.5 x D
Number of bending cycles3000000
Bending radius100 mm
Traversing path10 m
Traversing rate4 m/s
Acceleration4 m/s²
Torsion force± 30 °/m
Near end crosstalk attenuation (NEXT)80 dB (with 1 MHz)
76 dB (at 4 МHz)
70 dB (at 10 MHz)
65 dB (at 16 MHz)
63 dB (at 20 МHz)
60 dB (at 31.25 МHz)
55 dB (at 62.5 МHz)
50 dB (at 100 MHz)
Halogen-freeyes
Resistance to oilin accordance with DIN EN 60811-2-1
Flame resistanceaccording to IEC 60332-1-2
in accordance with UN ECE-R 118.03
Other resistanceUV resistant
Special propertiesElectrical properties in accordance with EN 50288-2-2
Ambient temperature (operation)-40 °C ... 70 °C (Cable, flexible installation)
-40 °C ... 70 °C (cable, fixed installation)
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP65
IP67
IP65/IP67
Standards and regulations
Standards/specificationsIEC PAS 61076-3-117

ETIM for 1416225 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 4
Type of electrical connection, field-sided (EF005525) Other
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) Other
Type of plug-in contact, box-sided (EF008386) Male (plug)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 5 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) No
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) Yes
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -40 °C
Degree of protection (IP) (EF005474) IP65
