VS-PPC/PL-M12MS-93R-LI/5,0 1416261 PHOENIX CONTACT Network cable

VS-PPC/PL-M12MS-93R-LI/5,0

1416261

PHOENIX CONTACT

1 Pcs.

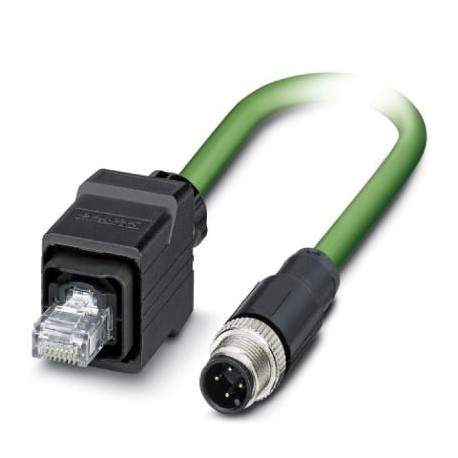

Network cable Network cable, PROFINET CAT5 (100 MBit/s), 4-pole, PUR, green RAL 6018, RJ45 Push-pull / IP67 straight connector, to M12 / IP67 straight connector, cable length: 2 m

Cables > Data cable
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1416261
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 311 (PC-2011)
GTIN4046356473446
Weight per Piece (excluding packing)323.850 g
Custom tariff number85444210
Country of originPL (Poland)

Dimensions

Length of cable2 m

Ambient conditions

Degree of protectionIP65 (M12 connector)
IP67 (RJ45 connector)

General data

Rated voltage48 V AC
60 V DC
Number of positions4
Signal type/categoryPROFINET CAT5 (IEC 11801), 100 Mbps

Characteristics head 1

Head typePlug straight RJ45 Push Pull / IP67
No. of positions (pin connector pattern)4
Colorblack
Material (component)Plastic

Characteristics head 2

Head typePlug straight M12 / IP67
No. of positions (pin connector pattern)4
Colorblack
Material (component)Plastic

Cable

Cable typePROFINET robot CAT5
Cable type (abbreviation)93R
UL AWM style20233 (80°C/300 V)
Signal type/categoryPROFINET CAT5 (IEC 11801), 100 Mbps
EtherCAT®CAT5 (IEC 11801), 100 Mbps
Cable structure1x4xAWG22/19; S/TQ
Conductor cross section4x 0.34 mm²
AWG signal line22
Conductor structure signal line19x 0.15 mm
Core diameter including insulation1.5 mm
Wire colorsWhite, yellow, blue, orange
Overall twistStar quad
ShieldingTinned copper braided shield
Optical shield covering85 %
External sheath, colorgreen RAL 6018
Outer sheath thicknessapprox. 1 mm
External cable diameter D6.5 mm ±0.2 mm
Minimum bending radius, fixed installation5 x D
Torsion force± 180 °/m (1 000 000 torsion cycles)
Cable weight55 kg/km
Outer sheath, materialPUR
Material conductor insulationFoamed PE
Conductor materialTin-plated Cu litz wires
Insulation resistance≥ 500 MΩ*km
Loop resistance≤ 120.00 Ω/km
Wave impedance100 Ω ±5 Ω (at 100 MHz)
Attenuation2.9 dB (with 1 MHz)
5 dB (at 4 МHz)
8.1 dB (at 10 MHz)
10.4 dB (at 16 MHz)
11.9 dB (at 20 МHz)
15.5 dB (at 31.25 МHz)
26.5 dB (at 62.5 МHz)
41 dB (at 100 MHz)
Signal runtime4.8 ns/m
Nominal voltage, cable300 V
Test voltage Core/Core2000 V (50 Hz, 1 min.)
Test voltage Core/Shield2000 V (50 Hz, 1 min.)
Flame resistanceaccording to IEC 60332-1-2
Halogen-freeaccording to IEC 60754-1
Resistance to oilin accordance with DIN EN 60811-2-1
Other resistanceUV resistant According to UL 1581, Section 1200
Ambient temperature (operation)-40 °C ... 80 °C
-40 °C ... 80 °C
Ambient temperature (installation)-20 °C ... 60 °C
Ambient temperature (storage/transport)-40 °C ... 80 °C

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
