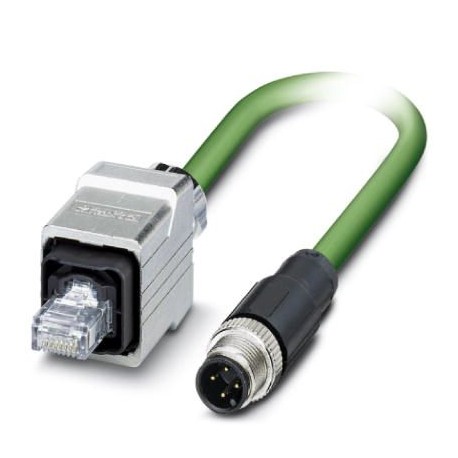

PHOENIX CONTACT VS-PPC/ME-M12MS-93R-LI/5,0 VS-PPC/ME-M12MS-93R-LI/5,0 1416258 PHOENIX CONTACT Network cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

VS-PPC/ME-M12MS-93R-LI/5,0 1416258 PHOENIX CONTACT Network cable

VS-PPC/ME-M12MS-93R-LI/5,0

1416258

PHOENIX CONTACT

1 Pcs.

Network cable Network cable, PROFINET CAT5 (100 MBit/s), 4-pole, RJ45 Push-pull / IP67 straight connector, to M12 / IP67 straight connector, cable length: 2 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1416258
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 310 (PC-2011)
GTIN4046356473439
Weight per Piece (excluding packing)323.850 g
Custom tariff number85444210
Country of originPL (Poland)

Dimensions

Length of cable2 m

Ambient conditions

Degree of protectionIP65 (M12 connector)
IP67 (RJ45 connector)

General data

Rated voltage48 V AC
60 V DC
Number of positions4
Signal type/categoryPROFINET CAT5 (IEC 11801), 100 Mbps

Characteristics head 1

Head typePlug straight RJ45 Push Pull / IP67
No. of positions (pin connector pattern)4
Colorsilver
Material (component)Metal

Characteristics head 2

Head typePlug straight M12 / IP67
No. of positions (pin connector pattern)4
Colorblack
Material (component)Plastic

Cable

Cable typePROFINET robot CAT5
Cable type (abbreviation)93R
UL AWM style20233 (80°C/300 V)
Signal type/categoryPROFINET CAT5 (IEC 11801), 100 Mbps
EtherCAT®CAT5 (IEC 11801), 100 Mbps
Cable structure1x4xAWG22/19; S/TQ
Conductor cross section4x 0.34 mm²
AWG signal line22
Conductor structure signal line19x 0.15 mm
Core diameter including insulation1.5 mm
Wire colorsWhite, yellow, blue, orange
Overall twistStar quad
ShieldingTinned copper braided shield
Optical shield covering85 %
External sheath, colorgreen RAL 6018
Outer sheath thicknessapprox. 1 mm
External cable diameter D6.5 mm ±0.2 mm
Minimum bending radius, fixed installation5 x D
Torsion force± 180 °/m (1 000 000 torsion cycles)
Cable weight55 kg/km
Outer sheath, materialPUR
Material conductor insulationFoamed PE
Conductor materialTin-plated Cu litz wires
Insulation resistance≥ 500 MΩ*km
Loop resistance≤ 120.00 Ω/km
Wave impedance100 Ω ±5 Ω (at 100 MHz)
Attenuation2.9 dB (with 1 MHz)
5 dB (at 4 МHz)
8.1 dB (at 10 MHz)
10.4 dB (at 16 MHz)
11.9 dB (at 20 МHz)
15.5 dB (at 31.25 МHz)
26.5 dB (at 62.5 МHz)
41 dB (at 100 MHz)
Signal runtime4.8 ns/m
Nominal voltage, cable300 V
Test voltage Core/Core2000 V (50 Hz, 1 min.)
Test voltage Core/Shield2000 V (50 Hz, 1 min.)
Flame resistanceaccording to IEC 60332-1-2
Halogen-freeaccording to IEC 60754-1
Resistance to oilin accordance with DIN EN 60811-2-1
Other resistanceUV resistant According to UL 1581, Section 1200
Ambient temperature (operation)-40 °C ... 80 °C
-40 °C ... 80 °C
Ambient temperature (installation)-20 °C ... 60 °C
Ambient temperature (storage/transport)-40 °C ... 80 °C

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1416258 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 4
Type of electrical connection, field-sided (EF005525) M12
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) Other
Type of plug-in contact, box-sided (EF008386) Male (plug)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 2 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) Yes
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -40 °C
Rated voltage (EF000228) 48 V
Degree of protection (IP) (EF005474) IP65
