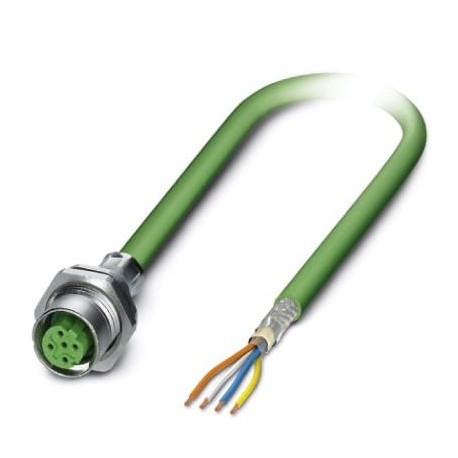

PHOENIX CONTACT VS-OE-M12FSBP-93C-LI/2,0 VS-OE-M12FSBP-93C-LI/2,0 1416209 PHOENIX CONTACT Network cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

VS-OE-M12FSBP-93C-LI/2,0 1416209 PHOENIX CONTACT Network cable

VS-OE-M12FSBP-93C-LI/2,0

1416209

PHOENIX CONTACT

1 Pcs.

Network cable Conect. plug. to be apar. poster wall, PROFINET CAT5 (100 MBit/s), EtherCAT® CAT5 (100 MBit/s), 4-pole halogen-free, green RAL 6018, shielded, Female connection, straight, M12, encoding: D, at free cable end, Rear mounting, Cable connection, cable length: 2 m, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) item code: 1239110

Cables > Circular connector, mounting (with cable)
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1416209
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 309 (PC-2011)
GTIN4046356474740
Weight per Piece (excluding packing)153.700 g
Custom tariff number85444290
Country of originDE (Germany)

Ambient conditions

Degree of protectionIP67
Ambient temperature (operation)-40 °C ... 70 °C (Plug / socket)
-50 °C ... 70 °C (cable, flexible installation)
-20 °C ... 60 °C (cable, fixed installation)

General data

NoteThe electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Rated current at 40°C4 A
Rated voltage250 V
Number of positions4
Overvoltage categoryII
Degree of pollution3
Alternative short product descriptionPROFINET cable
Contact materialCuZn
Contact carrier materialPA 6.6
Contact surface materialNi/Au

Standards and Regulations

Flammability rating according to UL 94V0

Cable

Product labeling"sequential length in metres" PN-CABLE-934-C / PUR-4X22AWG/7 Trailing * 22AWG (SHIELDED) (UL) E119100 CMX 75°C VERIFIED (UL) CAT 5E PATCH CABLE FRNC * (Cable printing cable supplier)
Cable typePROFINET drag chain CAT5
Cable type (abbreviation)93C
Signal type/categoryPROFINET CAT5 (IEC 11801), 100 Mbps
EtherCAT®CAT5 (IEC 11801), 100 Mbps
Cable structure1x4xAWG22/7; SF/TQ
Conductor cross section4x 0.34 mm²
AWG signal line22
Conductor structure signal line7x 0.25 mm
Core diameter including insulation1.5 mm
Wire colorsWhite, yellow, blue, orange
Overall twistStar quad
ShieldingAluminum-coated foil, tinned copper braided shield
Optical shield covering85 %
External sheath, colorgreen RAL 6018
Outer sheath thicknessapprox. 0.9 mm
External cable diameter D6.5 mm ±0.2 mm
Minimum bending radius, fixed installation5 x D
Minimum bending radius, flexible installation7.5 x D
Number of bending cycles3000000
Bending radius100 mm
Traversing path10 m
Traversing rate4 m/s
Acceleration4 m/s²
Torsion force± 30 °/m
Tensile strength GRP≤ 150 N
Cable weight61 kg/km
Outer sheath, materialPUR
Material, inner sheathFRNC
Material conductor insulationPE
Conductor materialTin-plated Cu litz wires
Insulation resistance≥ 500 MΩ*km
Loop resistance≤ 120.00 Ω/km
Wave impedance100 Ω ±15 Ω (at 1 ... 100 MHz)
Near end crosstalk attenuation (NEXT)80 dB (with 1 MHz)
76 dB (at 4 МHz)
70 dB (at 10 MHz)
65 dB (at 16 MHz)
63 dB (at 20 МHz)
60 dB (at 31.25 МHz)
55 dB (at 62.5 МHz)
50 dB (at 100 MHz)
Attenuation2.1 dB (with 1 MHz)
4 dB (at 4 МHz)
6.3 dB (at 10 MHz)
8 dB (at 16 MHz)
9 dB (at 20 МHz)
11.4 dB (at 31.25 МHz)
16.5 dB (at 62.5 МHz)
21.3 dB (at 100 MHz)
Signal speed0.66 c
Signal runtime5.3 ns/m
Coupling resistance≤ 20.00 mΩ/m (at 10 MHz)
Nominal voltage, cable600 V (UL rating)
Test voltage Core/Core2000 V (50 Hz, 1 min.)
Test voltage Core/Shield2000 V (50 Hz, 1 min.)
Special propertiesElectrical properties according to EN 50288-2-2
Flame resistanceaccording to IEC 60332-1-2
Halogen-freeyes
Resistance to oilin accordance with DIN EN 60811-2-1
Other resistanceUV resistant
Ambient temperature (operation)-40 °C ... 70 °C (cable, fixed installation)
-40 °C ... 70 °C (cable, flexible installation)
Ambient temperature (installation)-20 °C ... 60 °C
Ambient temperature (storage/transport)-50 °C ... 70 °C

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 1416209 Connectors (EC003570)
Feature Name Feature Value
Cable length (EF000536) 2 mm
Type of plug-in contact, outer side (EF005528) None
Mounting method (EF000003) Back wall mounting
Housing material (EF001596) Other
Material of contact surface (EF004020) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Ambient temperature (EF002386) 85 °C
Operating temperature (EF002393) -25 °C
Rated voltage (EF000228) 250 V
With shield connection (EF002535) Yes
Screw-in thread (EF012303) M12
Min. number of insertion cycles (EF012212) 100
Degree of protection (IP), mounted (EF007466) Other
