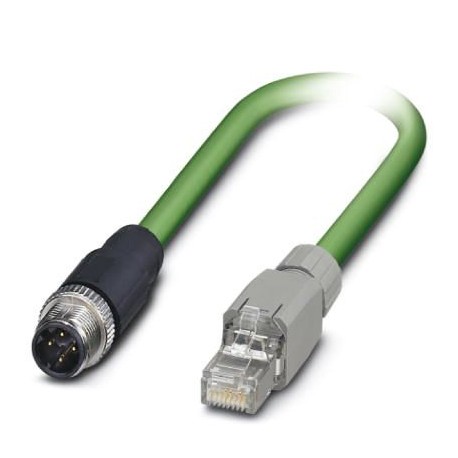

PHOENIX CONTACT NBC-M12MSD/ 2,0-93C/R4AQ NBC-M12MSD/ 2,0-93C/R4AQ 1416188 PHOENIX CONTACT Network cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NBC-M12MSD/ 2,0-93C/R4AQ 1416188 PHOENIX CONTACT Network cable

NBC-M12MSD/ 2,0-93C/R4AQ

1416188

PHOENIX CONTACT

1 Pcs.

Network cable Network cable, PROFINET CAT5 (100 MBit/s), EtherCAT® CAT5 (100 MBit/s), 4-pole, shielded (Advanced Shielding Technology), M12 straight connector, encoding: D / IP67, a RJ45 / IP20 straight connector, cable length: 2 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1416188
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 309 (PC-2011)
GTIN4046356474672
Weight per Piece (excluding packing)153.200 g
Custom tariff number85444210
Country of originPL (Poland)

Dimensions

Length of cable2 m

Ambient conditions

Degree of protectionIP65 (M12 connector)
IP20 (RJ45 connector)

General data

Rated voltage48 V AC
60 V DC
Number of positions4
Signal type/categoryPROFINET CAT5 (IEC 11801), 100 Mbps
Overvoltage categoryI
Degree of pollution3
Alternative short product descriptionPROFINET cable

Characteristics head 1

Head typePlug straight M12
Colorblack

Characteristics head 2

Head typePlug straight RJ45
Colorgray

Standards and Regulations

Flammability rating according to UL 94V0

Cable

Product labeling"sequential length in metres" PN-CABLE-934-C / PUR-4X22AWG/7 Trailing * 22AWG (SHIELDED) (UL) E119100 CMX 75°C VERIFIED (UL) CAT 5E PATCH CABLE FRNC * (Cable printing cable supplier)
Cable typePROFINET drag chain CAT5
Cable type (abbreviation)93C
Signal type/categoryPROFINET CAT5 (IEC 11801), 100 Mbps
EtherCAT®CAT5 (IEC 11801), 100 Mbps
Cable structure1x4xAWG22/7; SF/TQ
Conductor cross section4x 0.34 mm²
AWG signal line22
Conductor structure signal line7x 0.25 mm
Core diameter including insulation1.5 mm
Wire colorsWhite, yellow, blue, orange
Overall twistStar quad
ShieldingAluminum-coated foil, tinned copper braided shield
Optical shield covering85 %
External sheath, colorgreen RAL 6018
Outer sheath thicknessapprox. 0.9 mm
External cable diameter D6.5 mm ±0.2 mm
Minimum bending radius, fixed installation5 x D
Minimum bending radius, flexible installation7.5 x D
Number of bending cycles3000000
Bending radius100 mm
Traversing path10 m
Traversing rate4 m/s
Acceleration4 m/s²
Torsion force± 30 °/m
Tensile strength GRP≤ 150 N
Cable weight61 kg/km
Outer sheath, materialPUR
Material, inner sheathFRNC
Material conductor insulationPE
Conductor materialTin-plated Cu litz wires
Insulation resistance≥ 500 MΩ*km
Loop resistance≤ 120.00 Ω/km
Wave impedance100 Ω ±15 Ω (at 1 ... 100 MHz)
Near end crosstalk attenuation (NEXT)80 dB (with 1 MHz)
76 dB (at 4 МHz)
70 dB (at 10 MHz)
65 dB (at 16 MHz)
63 dB (at 20 МHz)
60 dB (at 31.25 МHz)
55 dB (at 62.5 МHz)
50 dB (at 100 MHz)
Attenuation2.1 dB (with 1 MHz)
4 dB (at 4 МHz)
6.3 dB (at 10 MHz)
8 dB (at 16 MHz)
9 dB (at 20 МHz)
11.4 dB (at 31.25 МHz)
16.5 dB (at 62.5 МHz)
21.3 dB (at 100 MHz)
Signal speed0.66 c
Signal runtime5.3 ns/m
Coupling resistance≤ 20.00 mΩ/m (at 10 MHz)
Nominal voltage, cable600 V (UL rating)
Test voltage Core/Core2000 V (50 Hz, 1 min.)
Test voltage Core/Shield2000 V (50 Hz, 1 min.)
Special propertiesElectrical properties according to EN 50288-2-2
Flame resistanceaccording to IEC 60332-1-2
Halogen-freeyes
Resistance to oilin accordance with DIN EN 60811-2-1
Other resistanceUV resistant
Ambient temperature (operation)-40 °C ... 70 °C (cable, fixed installation)
-40 °C ... 70 °C (cable, flexible installation)
Ambient temperature (installation)-20 °C ... 60 °C
Ambient temperature (storage/transport)-50 °C ... 70 °C

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 1416188 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 4
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Male (plug)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 2 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) Yes
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -40 °C
Rated current In (EF008250) 1 A
Rated voltage (EF000228) 48 V
Degree of protection (IP) (EF005474) IP65
