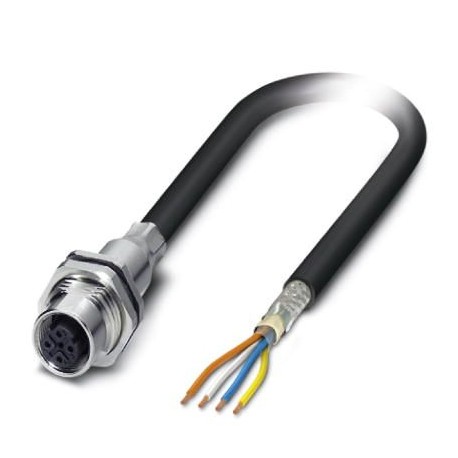

VS-FSDBPS-OE-937-2,0 1402764 PHOENIX CONTACT Network cable
VS-FSDBPS-OE-937-2,0
1402764
PHOENIX CONTACT
1 Pcs.
Network cable
Conect. plug. to be apar. poster wall, PROFINET CAT5 (100 MBit/s) CAT5 (100 MBit/s), 4-pole, halogen-free PE-X, green RAL 6018, shielded, Built-in mounting female, straight, M12-SPEEDCON, coding: D, free cable end, Rear mounting, cable length: 5 m, 0.34 mm², PROFINET, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) item code: 1238686
Cables > Circular connector, mounting (with cable)
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1402764 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356631372 |
| Weight per Piece (excluding packing) | 151.800 g |
| Custom tariff number | 85444210 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Number of positions | 4 |
|---|---|
| Shielded | yes |
| Insertion/withdrawal cycles | ≥ 100 |
| Cable diameter | 6.60 mm |
| Cable outlet | straight |
| Cable structure | 1x4xAWG22/7; SF/TQ |
| Length of cable | 2 m |
| Degree of protection | IP67 |
| IP67 | |
| No. of cable outlets | 1 |
Line characteristics
| Cable type | PROFINET railway applications |
|---|---|
| Cable structure | 1x4xAWG22/7; SF/TQ |
| Conductor cross section | 4x 0.34 mm² |
| AWG signal line | 22 |
| Conductor structure signal line | 7x 0.25 mm |
| Core diameter including insulation | approx. 1.5 mm |
| External cable diameter | 6.6 mm ±0.4 mm |
| Wire colors | white-blue, orange-yellow |
| External sheath, color | black RAL 9005 |
| Transmission medium | Copper |
| Conductor resistance | ≤ 54.4 Ω/km |
| Working capacitance | ≤ 65 pF (core-core) |
| ≤ 100 pF (core-shield) | |
| Wave impedance | 100 Ω ±5 Ω (f = 100 MHz) |
| Near end crosstalk attenuation (NEXT) | 73 dB (with 1 MHz) |
| 70 dB (at 4 МHz) | |
| 65 dB (at 10 MHz) | |
| 57 dB (at 31.5 МHz) | |
| 52 dB (at 62.5 МHz) | |
| 48 dB (at 100 MHz) | |
| Wave attenuation | 2 dB (with 1 MHz) |
| 4.4 dB (at 4 МHz) | |
| 7.4 dB (at 10 MHz) | |
| 14 dB (at 31.5 МHz) | |
| 20 dB (at 62.5 МHz) | |
| 26 dB (at 100 MHz) | |
| Return Loss | 25 dB (at 4 МHz) |
| 30 dB (at 10 MHz) | |
| 30 dB (at 31.5 МHz) | |
| 30 dB (at 62.5 МHz) | |
| 28 dB (at 100 MHz) | |
| Signal speed | 75 c |
| Shield attenuation | 40 dB (30 MHz ≤ f ≤ 100 MHz) |
| Coupling resistance | 200.00 mΩ/m (f ≤ 30 MHz) |
| Nominal voltage, cable | 300 V AC |
| Test voltage, cable | 2000 V AC (50 Hz, 5 minutes) |
| Overall twist | Star quad |
| Shielding | Plastic-coated aluminum foil, tinned copper braided shield |
| Outer sheath, material | PE-X |
| Material conductor insulation | Foamed PE |
| Conductor material | silver-plated Cu litz wires |
| Cable weight | 70 kg/km |
| Minimum bending radius, fixed installation | 6 x D |
| Flame resistance | EN 60332-1-2 |
| EN 50266 | |
| EN 60332-3-25 | |
| NF C32-070, 2.1 | |
| NF C32-070, 2.2 | |
| UL 1685, 12 (FT4) | |
| in accordance with ISO 6722-1 5.22 (UN ECE-R 118.01) | |
| Halogen-free | According to EN 50267-2-1 |
| Resistance to oil | according to IRM 902, 72 h at 100 °C |
| Other resistance | Resistance to fuels according to IRM 903, 168 h at 70 °C |
| Ambient temperature (operation) | -50 °C ... 90 °C (cable, fixed installation) |
| -40 °C ... 90 °C (cable, flexible installation) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027060307eCl@ss 4.127060307eCl@ss 5.027061801eCl@ss 5.127060300eCl@ss 6.027279200eCl@ss 7.027060308eCl@ss 8.027060308eCl@ss 9.027060308
| Feature Name | Feature Value |
|---|---|
| Cable type (EF000081) | Other |
| Category (EF001619) | 5 |
| Length (EF001438) | 5 m |
| Type of connector connection 1 (EF002505) | Other |
| Type of connector connection 2 (EF002506) | Other |
| Colour outer sheath (EF001618) | Other |
| Locking lever (EF005199) | No |
| Colour anti-kink sleeve (EF004669) | Black |
| Oil resistant according to EN IEC 60811-404 (EF009770) | No |
| Cable construction (EF003433) | Other |
| Pin assignment (EF000940) | 1:1 |
| Compatible with Grade2TV according to XP-C 90-483 (EFFR0001) | No |
| Compatible with Grade3TV according to XP-C 90-483 (EFFR0002) | No |
