View larger
Images are for illustrative purposes only. Please refer to data sheet for details

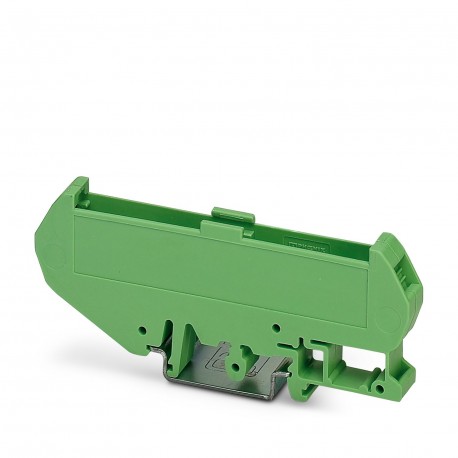

UM 72-LG 10 2959366 PHOENIX CONTACT Electronic housing
UM 72-LG 10
2959366
PHOENIX CONTACT
10 Pcs.
Electronic housing
Extruded profile support, narrow 10 mm module, consisting of two side elements
Profile housing and board base, 10 mm wide module, consisting of two side elements
Automation > Extruded profile modular housing
Housing (HS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Panel mounting base side part |
| Housing type | Press-drawn section housings |
| Housing series | UM |
| Product family | UM72 |
| Type | For PCB dimensions: 8 mm x 72 mm |
| Type | Lateral element |
Dimensions
| Dimensional drawing |  |
| Width | 8 mm |
| Depth | 89.6 mm |
| Length | 72 mm |
Material specifications
| Color (Housing) | green (RAL 6021) |
| Flammability rating according to UL 94 | V0 |
| Housing material | Polyamide |
| Surface characteristics | untreated |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -15 °C ... 50 °C |
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Open |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Green |
| RAL-number (EF000116) | 6021 |
| Width (EF000008) | 8 mm |
| Depth (EF000049) | 89.6 mm |
