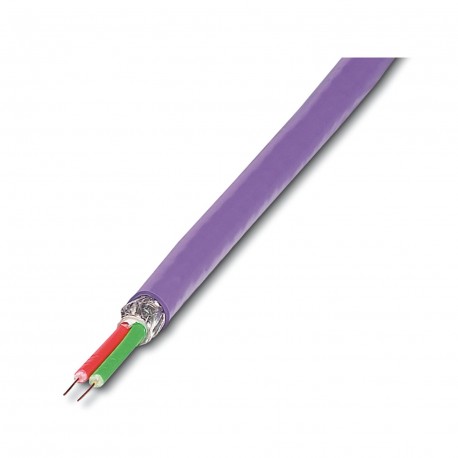

PSM-CABLE-PROFIB/FC 2744652 PHOENIX CONTACT Bus system cable
PSM-CABLE-PROFIB/FC
2744652
PHOENIX CONTACT
1 m.
Bus system cable
By meters, Bus system cable, PROFIBUS (12 MBit/s), shielded, PVC FR VI/PVC, violet, 2-conductors (1X2XAWG22/1), color single conductors: red, green, cable length: Free input (1.0 ... 1000.0 m)
By the meter, Bus system cable, PROFIBUS (12 Mbps), shielded, PVC FR VI/PVC, violet, 2-wire (1x2xAWG22/1), color single wire: red, green, cable length: Free entry (1.0 ... 1000.0 m)
Cables > Data and communication cable
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Data cable by the meter |
| Sensor type | PROFIBUS |
| Number of positions | 2 |
| Shielded | yes |
Electrical properties
| Nominal voltage UN | 48 V AC |
| 60 V DC | |
| Transmission medium | Copper |
Interfaces
| Signal type/category | PROFIBUS, 12 Mbps |
Cable/line
| Cable length | Free entry (1.0 ... 1000.0 m) |
| Cable weight | 80 kg/km |
| UL AWM Style | 21694 (60 °C / 600 V) |
| Wiring standards/regulations | Conductor material DIN EN 13602 Cu-ETP-A... |
| Shielding material DIN EN 13602 Cu-ETP-A...-B | |
| Number of positions | 2 |
| Shielded | yes |
| Conductor structure | 1x2xAWG22/1 |
| Signal speed | 0.81 c |
| Conductor structure signal line | 1x 0.65 mm |
| AWG signal line | 22 |
| Conductor cross section | 2x 0.34 mm² |
| Wire diameter incl. insulation | 2.55 mm |
| External cable diameter | 8.00 mm ±0.4 mm |
| Outer sheath, material | PVC FR VI |
| External sheath, color | violet |
| Conductor material | Bare Cu wire |
| Material wire insulation | PE |
| Single wire, color | red, green |
| Thickness, insulation | 0.95 mm |
| Thickness, outer sheath | 0.90 mm |
| Overall twist | 2 wires, twisted |
| Optical shield covering | 55 % |
| Insulation resistance | ≥ 16 GΩ*km |
| Loop resistance | ≤ 110.00 Ω/km |
| Cable capacity | approx. 28.5 nF/km (at 1 kHz) |
| ≤ 1500 pF/km (asymmetrical: Conductor to ground) | |
| Cable impedance | 150 Ω ±10 % (3 ... 20 MHz) |
| 185 Ω ±10 % (31.25 ... 38.4 kHz) | |
| 270 Ω ±10 % (9.6 kHz) | |
| Test voltage | 3600 V DC (3 s) |
| Smallest bending radius, fixed installation | ≥ 150 mm |
| Tensile strength | ≤ 100 N |
| Shield attenuation | ≤ 42.00 dB/km (at 16 MHz) |
| ≤ 22.00 dB (at 4 МHz) | |
| ≤ 4.00 dB (at 38.4 kHz) | |
| ≤ 2.50 dB (at 9.6 kHz) | |
| Flame resistance | according to IEC 60332-3-24 (Cat. C ) |
| according to CMG FT4 | |
| Resistance to oil | Limited resistance to mineral oils and greases |
| according to IEC 60811-2-1, 4 h at 70 °C | |
| Other resistance | Cold bending resistance (according to DIN VDE 0473 Part 811-1-4 (after 16 h at -40 °C)) |
| UV resistant (CL3 SUN RES) | |
| Ambient temperature (operation) | -40 °C ... 60 °C |
| Feature Name | Feature Value |
|---|---|
| Conductor surface (EF010804) | Other |
| Diameter conductor (EF001621) | 2.55 mm |
| Nominal cross section conductor (EF000060) | 0.34 mm² |
| Conductor category (EF001632) | Class 1 = solid |
| Number of cores (EF001792) | 2 |
| Material core insulation (EF000061) | Other |
| Specification core insulation (EF011805) | Polyethylene (PE) |
| Core identification (EF000067) | Other |
| Screen over stranding element (EF001623) | Foil + braiding |
| Longitudinal water blocking cable (EF011011) | No |
| Radial water blocking cable (EF011012) | No |
| Suitable for underground installation (EF003689) | No |
| Protective sheath (EF001691) | None |
| Material outer sheath (EF001625) | Other |
| Specification material outer sheath (EF011806) | Other |
| Colour outer sheath (EF001618) | Purple/violet |
| Low smoke according to EN IEC 61034-2 (EF003799) | No |
| Oil resistant according to EN IEC 60811-404 (EF009770) | No |
| Outer diameter approx. (EF003921) | 8 mm |
| Min. permitted bending radius, stationary application/permanent installation (EF011803) | 150 mm |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -40 °C |
| Category (EF001619) | Other |
