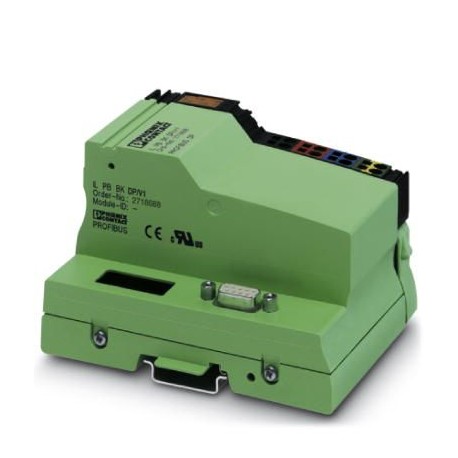

PHOENIX CONTACT IL PB BK DP/V1-PAC IL PB BK DP/V1-PAC 2862246 PHOENIX CONTACT Bus coupler View larger
Images are for illustrative purposes only. Please refer to data sheet for details

IL PB BK DP/V1-PAC 2862246 PHOENIX CONTACT Bus coupler

IL PB BK DP/V1-PAC

2862246

PHOENIX CONTACT

1 Pcs.

Bus coupler Inline, Bus coupler, PROFIBUS DP, D-SUB-9 female connector, local bus transmission rate:500 kBit/s, protection index: IP20, including Inline connector and marking surface

Automation > Fieldbus, decentr. periphery - communication module
I/O

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2862246
Packing unit1 pc
Catalog pagePage 133 (C-6-2017)
GTIN4017918907471
Weight per Piece (excluding packing)240.000 g
Custom tariff number85389091
Country of originDE (Germany)

Note

Utilization restriction1

Dimensions

Dimensional drawing
Width85 mm
Height119.8 mm
Depth71.5 mm

Ambient conditions

Ambient temperature (operation)0 °C ... 55 °C
Ambient temperature (storage/transport)-25 °C ... 85 °C
Permissible humidity (operation)85 % (non-condensing)
Permissible humidity (storage/transport)85 % (non-condensing)
Air pressure (operation)80 kPa ... 106 kPa (up to 3000 m above sea level)
Air pressure (storage/transport)70 kPa ... 106 kPa (up to 3000 m above sea level)
Degree of protectionIP20

General

Mounting typeDIN rail
Net weight240 g
Note on weight specificationswith connectors

Interfaces

DesignationPROFIBUS DP
No. of channels1
Connection methodD-SUB-9 female connector
Transmission speed9.6 kbps ... 12 Mbps
Number of positions9
DesignationInline local bus
Connection methodInline data jumper
Transmission speed500 kbps

System limits of the bus coupler

DesignationSystem limits of the bus coupler
Amount of process datamax. 176 Byte (per station)
max. 176 Byte (Input)
max. 176 Byte (Output)
Number of parameter datamax. 168 Byte (DP/V1 mode)
Number of configuration datamax. 168 Byte (DP/V1 mode)
Number of supported devicesmax. 63 (per station)
Number of local bus devices that can be connectedmax. 63
Number of devices with parameter channelmax. 16
Number of supported branch terminals with remote bus branch0

Inline potentials

DesignationBus coupler supply UBC; Communications power UL(7.5 V) and the analog supply UANA(24 V) are generated from the bus coupler supply.
Supply voltage24 V DC (via Inline connector)
Supply voltage range19.2 V DC ... 30 V DC (including all tolerances, including ripple)
Current consumptiontyp. 100 mA (without connected Inline I/O terminals)
max. 1.25 A (with max. number of connected I/O terminal blocks)
DesignationCommunications power (UL)
Supply voltage7.5 V DC ±5 %
Power supply unitmax. 2 A DC
DesignationSupply of analog modules (UANA)
Supply voltage24 V DC
Supply voltage range19.2 V DC ... 30 V DC (including all tolerances, including ripple)
Power supply unitmax. 0.5 A DC
DesignationMain circuit supply (UM)
Supply voltage24 V DC
Supply voltage range19.2 V DC ... 30 V DC (including all tolerances, including ripple)
Power supply unitmax. 8 A DC (sum of UM+ US)
DesignationSegment circuit supply (US)
Supply voltage24 V DC
Supply voltage range19.2 V DC ... 30 V DC (including all tolerances, including ripple)
Power supply unitmax. 8 A DC (sum of UM+ US)

Electrical isolation

Test section500 V
PROFIBUS / FE 500 V
PROFIBUS / FE D-SUB 500 V
500 V
500 V
FE / FE D-SUB 500 V

Standards and Regulations

Mechanical testsVibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 5g
Shock in acc. with EN 60068-2-27/IEC 60068-2-27 Operation: 25g, 11 ms duration, semi-sinusoidal shock impulse
Protection classIII, IEC 61140, EN 61140, VDE 0140-1

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2862246 PLC's (EC001604)
Feature Name Feature Value
Supply voltage DC (EF007534) 19.2 V
Voltage type (supply voltage) (EF002991) DC
Supporting protocol for EtherCAT (EF017564) No
Supporting protocol for EtherNet/IP (EF007521) No
Radio standard Bluetooth (EF007178) No
Radio standard WLAN 802.11 (EF007179) No
Radio standard GPRS (EF008523) No
IO link master (EF007298) No
System accessory (EF004118) Yes
Degree of protection (IP) (EF005474) IP20
With potential separation (EF003272) No
Fieldbus connection over separate bus coupler possible (EF004002) Yes
Suitable for rail mounting (EF003972) Yes
Wall mounting/direct mounting (EF007020) No
Front built-in possible (EF007016) No
Rack-assembly possible (EF007018) No
Suitable for safety functions (EF001597) No
Performance level according to EN ISO 13849-1 (EF007399) None
Appendant operation agent (Ex ia) (EF004141) No
Appendant operation agent (Ex ib) (EF004142) No
Explosion safety category for gas (EF003997) None
Explosion safety category for dust (EF003998) None
Width (EF000008) 85.05 mm
Height (EF000040) 120 mm
Depth (EF000049) 70.43 mm
