PHOENIX CONTACT RIF-0-OPT-24DC/48DC/100 RIF-0-OPT-24DC/48DC/100 2905294 PHOENIX CONTACT Solid-state relay module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RIF-0-OPT-24DC/48DC/100 2905294 PHOENIX CONTACT Solid-state relay module

RIF-0-OPT-24DC/48DC/100

2905294

PHOENIX CONTACT

10 Pcs.

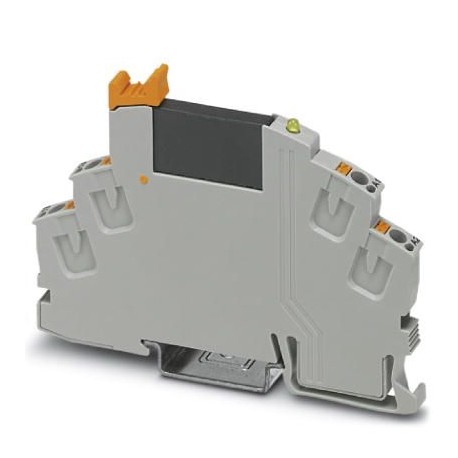

Solid-state relay module Pre-assembled solid-state relay module with push-in connection, consisting of: relay socket with ejector and plug-in miniature solid-state relay. Input voltage: 24 V DC. Output: 3-48 V DC/100 mA

Automation > Optocoupler
Industrial Relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2905294
Packing unit10 pc
Catalog pagePage 337 (C-5-2017)
GTIN4046356945424
Weight per Piece (excluding packing)23.440 g
Custom tariff number85364110
Country of originHU (Hungary)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width6.2 mm
Height93 mm
Depth66 mm

Ambient conditions

Ambient temperature (operation)-25 °C ... 60 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Degree of protectionIP20

Input data

Input voltage range19.2 V DC ... 28.8 V DC
Rated actuating voltage UC24 V DC
"0" signal switching threshold in reference to UC< 0.4
"1" signal switching threshold in reference to UC> 0.8
Typical response time20 µs
Typical turn-off time300 µs
Status displayYellow LED
Type of protectionFree-wheeling diode
Transmission frequency300 Hz
Power dissipation for nominal condition0.2 W

Output data

Output voltage range3 V DC ... 48 V DC
Limiting continuous current100 mA
Surge voltage protection> 56 V
Voltage drop at max. limiting continuous current< 1 V
Output circuit2-wire, floating
Type of protectionReverse polarity protection
Surge protection

Connection data 1

Connection nameInput side
Connection methodPush-in connection
Stripping length8 mm
Conductor cross section solid0.14 mm² ... 1.5 mm²
Conductor cross section flexible0.14 mm² ... 1.5 mm²
0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve)
Conductor cross section AWG24 ... 16

Connection data 2

Connection nameOutput side
Connection methodPush-in connection
Stripping length8 mm
Conductor cross section solid0.14 mm² ... 1.5 mm²
Conductor cross section flexible0.14 mm² ... 1.5 mm²
0.14 mm² ... 1.5 mm² (Ferrule with plastic sleeve)
Conductor cross section AWG24 ... 16

General

Test voltage input/output2.5 kVrms(50 Hz, 1 min.)
Mounting positionany
Assembly instructionsIn rows with zero spacing
Operating mode100% operating factor
Flammability rating according to UL 94V2
DesignationAir clearances and creepage distances between the power circuits
Standards/regulationsDIN EN 50178
Degree of pollution2
Overvoltage categoryIII

Standards and Regulations

DesignationAir clearances and creepage distances between the power circuits
Standards/regulationsDIN EN 50178
Rated insulation voltage260 V AC
Rated surge voltage4 kV
InsulationBasic insulation
Degree of pollution2
Overvoltage categoryIII
Flammability rating according to UL 94V2

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Articles in set

Classifications


ETIM for 2905294 Relays (EC001504)
Feature Name Feature Value
Input voltage (EF003840) 19.2 V
Type of voltage (input voltage) (EF003033) DC
Output voltage (EF003933) 3 V
Type of output voltage (EF008222) DC
Rated operation current Ie (EF001443) 0.1 A
Type of digital output (EF003601) Electronic
With LED indication (EF005950) Yes

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
