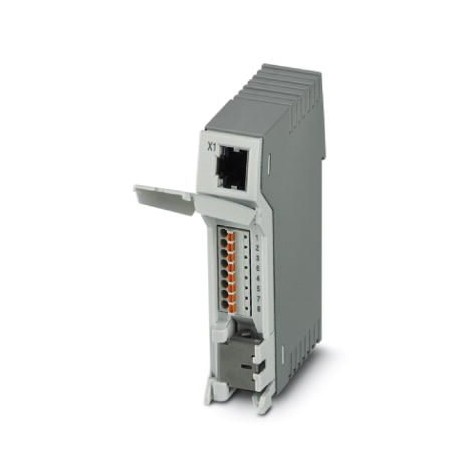

PHOENIX CONTACT PP-RJ-SCC-F PP-RJ-SCC-F 2703022 PHOENIX CONTACT Patch panels View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PP-RJ-SCC-F 2703022 PHOENIX CONTACT Patch panels

PP-RJ-SCC-F

2703022

PHOENIX CONTACT

1 Pcs.

Patch panels Patch panel, RJ45 female connector in push-in terminals, 10/100/1000 MBit/s, DIN rail adapter, IP20, protection contact with strain relief, shielding current control, surge protection

Automation > Patch panel copper (twisted pair)
Safety

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2703022
Packing unit1 pc
NoteMade to Order (non-returnable)
GTIN4055626463346
Weight per Piece (excluding packing)124.200 g
Custom tariff number85366990
Country of originDE (Germany)

Dimensions

Dimensional drawing
Width23.8 mm
Height101.3 mm
Depth86 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 75 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Permissible humidity (operation)10 % ... 95 % (non-condensing)
Altitude5000 m (For restrictions see manufacturer's declaration)
2000 m (ATEX approval)
Degree of protectionIP20 (Manufacturer's declaration)

General

Electrical isolationFE // Ethernet
Standards/regulationsDIN EN 61643-21
Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Net weight124.2 g
Housing materialPlastic
Colorgray
MTTF3281 Years (SN 29500 standard, temperature 25 °C, operating cycle 21 % (5 days a week, 8 hours a day))
1245 Years (SN 29500 standard, temperature 40 °C, operating cycle 34.25 % (5 days a week, 12 hours a day))
472 Years (SN 29500 standard, temperature 40 °C, operating cycle 100 % (7 days a week, 24 hours a day))
Degree of pollution2
Overvoltage categoryII
ConformanceCE-compliant
ATEX II 3 G Ex nA nC IIC T4 Gc X (Please follow the special installation instructions in the documentation!)
UL, USAUL 60079-0 Ed. 6 / UL 60079-15 Ed. 4
UL, USA/CanadaClass I, Zone 2, AEx nA IIC T4, Ex nA IIC Gc X T4
Class I, Div. 2, Groups A, B, C, D
UL, CanadaCSA 22.2 No. 60079-0 Ed. 3 / CSA 22.2 No. 60079-15:16

Power supply

Supply voltage range36 V DC ... 52 V DC 10 % (via PoE)
42 V DC ... 57 V DC (With UL approval)

Serial interface

Interface 1Ethernet interface, 10/100/1000Base-T(X) according to IEEE 802.3u
Connection methodPush-in connection
Transmission length100 m (including patch cables)
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.1.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.1.5 mm²
Conductor cross section AWG min.26
Conductor cross section AWG max.16
Stripping length8 mm
Pin assignment1:1
Serial transmission speed10/100/1000 Mbps
Maximum output current725 mA (PoE)
Current carrying capacity≤ 1.5 A (≤ 60 W (PoE+))
Maximum output power60 W
Interface 2Ethernet interface, 10/100/1000Base-T(X) according to IEEE 802.3u
Connection methodRJ45 CAT5e

Function

DesignationShield current monitoring
Switch-on threshold≥ 30 mA
Local diagnosticsYellow LED
Precision± 5 %
Response time3 s
Continuous shield current≤ 1.5 A
Power consumption270 mW (Shield current monitoring)
Impedance≤ 1 Ω
Voltage≤ 10 V

Standards and Regulations

Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Type of testVibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6
Test result10 Hz ... 57 Hz, amplitude ±3.5 mm, 57 Hz ... 150 Hz, 5g
Type of testShock in acc. with EN 60068-2-27/IEC 60068-2-27
Test result25g for 11 ms, three shocks in each direction
Standards/regulationsEN 61000-4-2
Contact discharge± 6 kV (Test Level 3)
Indirect discharge± 6 kV
Standards/regulationsEN 61000-4-3
Frequency range80 MHz ... 3 GHz (Test Level 3)
Standards/regulationsEN 61000-4-4
CommentsCriterion B
Standards/regulationsEN 61000-4-5
Signal± 1 kV (Data line, asymmetrical)
Standards/regulationsEN 61000-6-4
EN 61000-4-6
Frequency range0.15 MHz ... 80 MHz
Standards/regulationsDIN EN 61643-21
Rated insulation voltage85 V DC
IEC test classificationC2
ConformanceCE-compliant
ATEX II 3 G Ex nA nC IIC T4 Gc X
UL, USAUL 60079-0 Ed. 6 / UL 60079-15 Ed. 4
UL, USA/CanadaClass I, Zone 2, AEx nA IIC T4, Ex nA IIC Gc X T4
Class I, Div. 2, Groups A, B, C, D
UL, CanadaCSA 22.2 No. 60079-0 Ed. 3 / CSA 22.2 No. 60079-15:16
Noxious gas testISA-S71.04-1985 G3 Harsh Group A

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 2703022 Data networking products (EC001128)
Feature Name Feature Value
Number of buses/couplings (EF004395) 1
Suitable for number of connectors (EF001579) 1
Type of connector (EF002935) Other
Screened (EF000881) Yes
Category (EF001619) 5
Number of height units (EF003561) 2
Height (EF000040) 101.3 mm
Width (EF000008) 23.8 mm
Depth (EF000049) 86 mm
