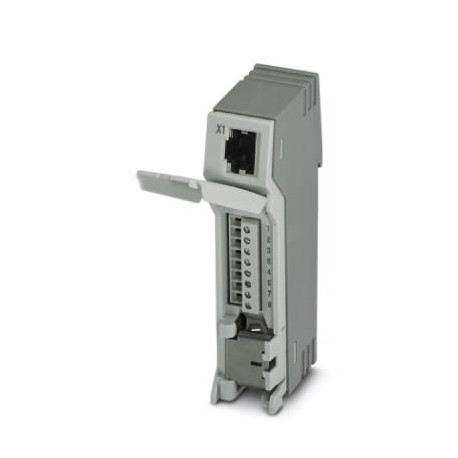

PP-RJ-SC 2703016 PHOENIX CONTACT Patch panels

PP-RJ-SC

2703016

PHOENIX CONTACT

1 Pcs.

Patch panels Patch panel, RJ45 female connector in screw terminals, 10/100/1000 MBit/s, DIN rail adapter, IP20, protection contact with strain relief

Automation > Patch panel copper (twisted pair)
Safety

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2703016
Packing unit1 pc
GTIN4055626462875
Weight per Piece (excluding packing)124.200 g
Custom tariff number85366990
Country of originDE (Germany)

Dimensions

Dimensional drawing
CaptionCompact housing
Width23.8 mm
Height101.3 mm
Depth50 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 75 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Permissible humidity (operation)10 % ... 95 % (non-condensing)
Altitude5000 m (For restrictions see manufacturer's declaration)
2000 m (ATEX approval)
Degree of protectionIP20 (Manufacturer's declaration)

General

Net weight124.2 g
Housing materialPlastic
Colorgray
MTTF105699 Years
Degree of pollution2
Overvoltage categoryII
ConformanceCE-compliant
ATEX II 3 G Ex nA IIC Gc U
UL, USAUL 60079-0 Ed. 6 / UL 60079-15 Ed. 4
UL, CanadaCSA 22.2 No. 60079-0 Ed. 3 / CSA 22.2 No. 60079-15:16

Serial interface

Interface 1Ethernet interface, 10/100/1000Base-T(X) according to IEEE 802.3u
Connection methodScrew terminal block
Transmission length100 m (including patch cables)
Conductor cross section solid min.0.14 mm²
Conductor cross section solid max.1.5 mm²
Conductor cross section flexible min.0.14 mm²
Conductor cross section flexible max.1.5 mm²
Conductor cross section AWG min.28
Conductor cross section AWG max.16
Torque0.22 Nm ... 0.25 Nm
Stripping length5 mm
Pin assignment1:1
Serial transmission speed10/100/1000 Mbps
Output nominal voltage< 60 V (ATEX approval)
< 57 V DC (With UL approval)
Maximum output current725 mA (Per channel)
Maximum output power60 W
Interface 2Ethernet interface, 10/100/1000Base-T(X) according to IEEE 802.3u
Connection methodRJ45 CAT5e

Standards and Regulations

Type of testVibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6
Test result10 Hz ... 57 Hz, amplitude ±3.5 mm, 57 Hz ... 150 Hz, 5g
Type of testShock in acc. with EN 60068-2-27/IEC 60068-2-27
Test result25g for 11 ms, three shocks in each direction
Rated insulation voltage85 V DC
ConformanceCE-compliant
ATEX II 3 G Ex nA IIC Gc U
UL, USAUL 60079-0 Ed. 6 / UL 60079-15 Ed. 4
UL, CanadaCSA 22.2 No. 60079-0 Ed. 3 / CSA 22.2 No. 60079-15:16
Noxious gas testISA-S71.04-1985 G3 Harsh Group A

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2703016 Data networking products (EC001128)
Feature Name Feature Value
Number of buses/couplings (EF004395) 1
Suitable for number of connectors (EF001579) 1
Type of connector (EF002935) Other
Screened (EF000881) Yes
Category (EF001619) 5
Number of height units (EF003561) 2
Height (EF000040) 101.3 mm
Width (EF000008) 23.8 mm
Depth (EF000049) 50 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
