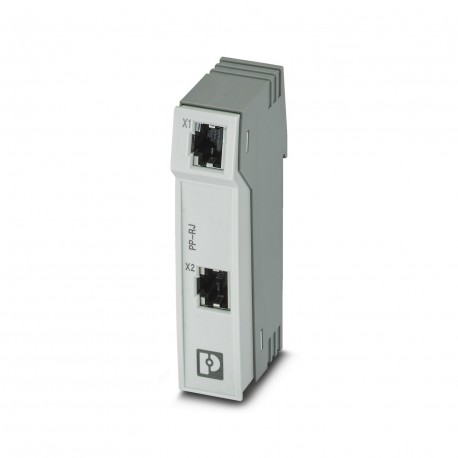

PP-RJ-RJ 2703015 PHOENIX CONTACT Patch panels
PP-RJ-RJ
2703015
PHOENIX CONTACT
1 Pcs.
Patch panels
Patch panel, two RJ45 female connectors, 10/100/1000 MBit/s, DIN rail adapter, IP20
Patch panel, two RJ45 jacks, CAT6, 10/100/1000 Mbps, DIN rail adapter, IP20
Automation > Patch panel copper (twisted pair)
Safety
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| Note on application | |
| Note on application | Only for industrial use |
| Utilization restriction | |
| CCCex note | Use in potentially explosive areas is not permitted in China. |
Product properties
| Product type | Patch panel |
| MTTF | 105699 Years |
| Data management status | |
| Article revision | 06 |
| Insulation characteristics | |
| Overvoltage category | II |
| Pollution degree | 2 |
Electrical properties
| Maximum power dissipation for nominal condition | 0 W (passive module, no supply voltage required) |
| Rated insulation voltage | 85 V DC (In accordance with EN/IEC 60079-7, Annex H) |
Interfaces
| Data: Ethernet interface, 10/100/1000Base-T(X) in accordance with IEEE 802.3 | |
| Serial transmission speed | 10/100/1000 Mbps |
| Frequency range | 250 MHz |
| Connection method | RJ45 jack |
| Note on the connection method | CAT6 |
| Pin assignment | 1:1 |
| Transmission length | 100 m (including patch cables) |
| Transmission medium | Copper |
| Output nominal voltage | < 57 V DC |
| Maximum output power | 60 W |
| Maximum output current | 725 mA (Per channel) |
| Data: Ethernet interface, 10/100/1000Base-T(X) in accordance with IEEE 802.3 | |
| Connection method | RJ45 jack |
Dimensions
| Dimensional drawing |  |
| Width | 23.8 mm |
| Height | 101.3 mm |
| Depth | 50 mm |
Material specifications
| Color (Housing) | light gray (RAL 7035) |
| Material (Housing) | Plastic |
| Flammability rating according to UL 94 | V0 |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP20 (Manufacturer's declaration) |
| Ambient temperature (operation) | -40 °C ... 75 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | ≤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation) |
| ≤ 2000 m (Restrictions for ATEX applications) | |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
Approvals
| CE | |
| Certificate | CE-compliant |
| ATEX | |
| Identification | II 3 G Ex ec IIC Gc |
| Certificate | PxCIF18ATEX2703015U |
| Note | Please follow the special installation instructions in the documentation! |
| UKEX | |
| Identification | II 3 G Ex ec IIC Gc |
| Certificate | PxCIMA22UKEX2703015U |
| UL, USA | |
| Certificate | UL 60079-0 Ed. 6 / UL 60079-15 Ed. 4 |
| UL, Canada | |
| Certificate | CSA 22.2 No. 60079-0 Ed. 3 / CSA 22.2 No. 60079-15:16 |
| Corrosive gas test | |
| Identification | ISA-S71.04-1985 G3 Harsh Group A |
| Shipbuilding | |
| Identification | DNV GL |
| DNV GL data | |
| Temperature | D |
| Humidity | B |
| Vibration | B |
| EMC | B |
Mounting
| Mounting type | DIN rail mounting, stationary |
| Assembly note | The product can be snapped onto all 35 mm DIN rails in accordance with EN 60715. |
| Feature Name | Feature Value |
|---|---|
| Number of buses/couplings (EF004395) | 1 |
| Suitable for number of connectors (EF001579) | 1 |
| Type of connector (EF002935) | Other |
| Screened (EF000881) | Yes |
| Category (EF001619) | 5 |
| Number of height units (EF003561) | 2 |
| Height (EF000040) | 101.3 mm |
| Width (EF000008) | 23.8 mm |
| Depth (EF000049) | 50 mm |
