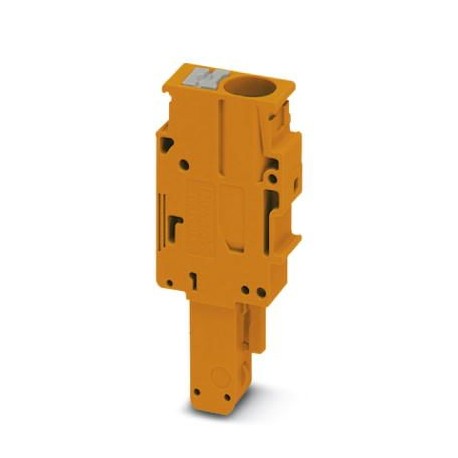

PP-H 6/ 1-L OG 1081233 PHOENIX CONTACT Plug

PP-H 6/ 1-L OG

1081233

PHOENIX CONTACT

50 Pcs.

Plug Connector, for free assembly, nominal voltage: 1000 V, nominal current: 41 A, connection type: Push-in connection, 1st floor, Dimensioning cross-section: 6 mm², cross-section: 0.5 mm² - 10 mm², colour: orange

Connectors > Terminal block connector
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1081233
Packing unit50 pc
Minimum order quantity50 pc
NoteMade to Order (non-returnable)
GTIN4055626807560
Weight per Piece (excluding packing)7.500 g
Custom tariff number85366990
Country of originPL (Poland)

General

Number of positions1
Number of levels1
Number of connections1
Potentials1
Nominal cross section6 mm²
Colororange
Insulating materialPA
Flammability rating according to UL 94V0
Area of applicationRailway industry
Machine building
Plant engineering
Maximum load current41 A (6)
Rated surge voltage8 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum power dissipation for nominal condition1.31 W
Maximum load current41 A (with 6 mm² conductor cross section)
Nominal current IN41 A
Nominal voltage UN1000 V
Open side panelNo

Dimensions

Width8.2 mm
Length21 mm
Height49.3 mm
31.2 mm
Pitch8.2 mm

Connection data

Connection methodPush-in connection
Connection in acc. with standardIEC 61984
Conductor cross section solid min.0.5 mm²
Conductor cross section solid max.10 mm²
Conductor cross section AWG min.20
Conductor cross section AWG max.8
Conductor cross section flexible min.0.5 mm²
Conductor cross section flexible max.6 mm²
Min. AWG conductor cross section, flexible20
Max. AWG conductor cross section, flexible10
Conductor cross section flexible, with ferrule without plastic sleeve min.0.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.6 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.6 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.1.5 mm²
Stripping length12 mm
Internal cylindrical gageA5

Standards and Regulations

Connection in acc. with standardIEC 61984
Flammability rating according to UL 94V0

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
