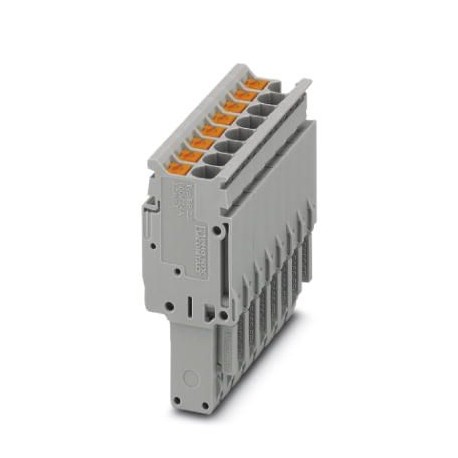

PHOENIX CONTACT PP 2,5/ 8 PP 2,5/ 8 3211287 PHOENIX CONTACT Plug View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PP 2,5/ 8 3211287 PHOENIX CONTACT Plug

PP 2,5/ 8

3211287

PHOENIX CONTACT

25 Pcs.

Plug Connector, rated voltage: 800 V, rated current: 24 A, number of connections: 8, number of poles: 8, connection type: Push-in connection, 1st floor, Sizing cross-section: 2.5 mm², cross-section: 0.14 mm² - 4 mm², color: gray

Connectors > Terminal block connector
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3211287
Packing unit25 pc
Minimum order quantity25 pc
NoteMade to Order (non-returnable)
Catalog pagePage 296 (C-1-2017)
GTIN4055626285603
Weight per Piece (excluding packing)25.690 g
Custom tariff number85366990
Country of originPL (Poland)

General

Number of positions8
Number of levels1
Number of connections8
Potentials8
Nominal cross section2.5 mm²
Colorgray
Insulating materialPA
Flammability rating according to UL 94V0
Area of applicationMachine building
Plant engineering
Rated surge voltage6 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum power dissipation for nominal condition0.77 W (the value is based on one connection block and is multiplied according to the pin assignment)
Maximum load current24 A (with 4 mm² conductor cross section)
Nominal current IN24 A
Nominal voltage UN800 V
Open side panelNo

Dimensions

Width41.6 mm
Length16 mm
Height41.2 mm
25.6 mm
Pitch5.2 mm

Connection data

Connection methodPush-in connection
Stripping length8 mm ... 10 mm
Connection in acc. with standardIEC 61984
Conductor cross section solid min.0.14 mm²
Conductor cross section solid max.4 mm²
Conductor cross section AWG min.26
Conductor cross section AWG max.12
Conductor cross section flexible min.0.14 mm²
Conductor cross section flexible max.2.5 mm²
Min. AWG conductor cross section, flexible26
Max. AWG conductor cross section, flexible14
Conductor cross section flexible, with ferrule without plastic sleeve min.0.14 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.2.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.14 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.2.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.0.5 mm²
Internal cylindrical gageA3

Standards and Regulations

Connection in acc. with standardIEC 61984
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 3211287 Terminal blocks (EC002021)
Feature Name Feature Value
Model (EF000010) Pin insert
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.14 mm²
Connectable conductor cross section solid-core (EF007337) 0.14 mm²
Connectable conductor cross section multi-wired (EF007343) 0.14 mm²
Total number of poles (without ground contact) (EF006240) 8
Width (EF000008) 41.2 mm
Connectable (EF006169) Yes
Number of poles (EF001391) 8
