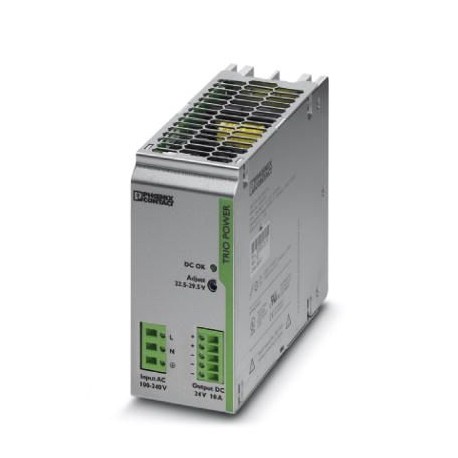

PHOENIX CONTACT TRIO-PS/1AC/24DC/10 TRIO-PS/1AC/24DC/10 2866323 PHOENIX CONTACT Power supply unit View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TRIO-PS/1AC/24DC/10 2866323 PHOENIX CONTACT Power supply unit

TRIO-PS/1AC/24DC/10

2866323

PHOENIX CONTACT

1 Pcs.

Power supply unit TRIO POWER Primary Switch-On Power Rail Mountable Power Supply, Input: Single Phase, Output: 24 V DC/10 A

Automation > DC-power supply
Power Supplies (PS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2866323
Packing unit1 pc
Catalog pagePage 175 (C-6-2013)
GTIN4046356046657
Weight per Piece (excluding packing)1,400.000 g
Custom tariff number85044030
Country of originCN (China)

Dimensions

Width60 mm
Height130 mm
Depth152.5 mm

Ambient conditions

Degree of protectionIP20
Ambient temperature (operation)-25 °C ... 70 °C (> 55° C derating : 2.5%/K)
Ambient temperature (storage/transport)-40 °C ... 85 °C
Max. permissible relative humidity (operation)≤ 95 % (at 25 °C, non-condensing)
Climatic class3K3 (in acc. with EN 60721)
Degree of pollution2

Input data

Nominal input voltage range100 V AC ... 240 V AC
Input voltage range85 V AC ... 264 V AC (Derating < 90 V AC: 2,5 %/V)
Dielectric strength maximum300 V AC
AC frequency range45 Hz ... 65 Hz
Discharge current to PE< 3.5 mA
Current consumption3 A (100 V AC)
1.5 A (240 V AC)
Nominal power consumption272 VA
Inrush surge current< 15 A
Mains buffering> 24 ms (120 V AC)
> 24 ms (230 V AC)
Input fuse6.3 A (slow-blow, internal)
Choice of suitable circuit breakers10 A ... 16 A (Characteristics B, C, D, K)
Power factor (cos phi)0.99
Type of protectionTransient surge protection
Protective circuit/componentVaristor

Output data

Nominal output voltage24 V DC ±1 %
Setting range of the output voltage (USet)22.5 V DC ... 29.5 V DC (> 24 V DC, constant capacity restricted)
Nominal output current (IN)10 A (UOUT= 24 V DC)
Derating55 °C ... 70 °C (2.5%/K)
Connection in parallelYes, for redundancy and increased capacity
Connection in seriesyes
Feedback resistance35 V DC
Output overvoltage protection< 35 V DC
Max. capacitive loadunlimited
Active current limitationApprox. 14 A (for short-circuit)
Control deviation< 1 % (change in load, static 10 % ... 90 %)
< 2 % (change in load, dynamic 10 % ... 90 %)
< 0.1 % (change in input voltage ±10 %)
Residual ripple< 10 mVPP
Output power240 W
Typical response time< 1 s
Peak switching voltages nominal load< 50 mVPP
Maximum power dissipation in no-load condition6.7 W
Power loss nominal load max.30 W

General

Net weight1.4 kg
Operating voltage displayGreen LED
Efficiency89 % (for 230 V AC and nominal values)
Insulation voltage input/output4 kV AC (type test)
2 kV AC (routine test)
Insulation voltage input / PE2 kV AC (type test)
2 kV AC (routine test)
Insulation voltage output / PE500 V DC (type test)
Protection classI (with PE connection)
Degree of protectionIP20
MTBF (IEC 61709, SN 29500)> 981000 h (40 °C)
Mounting positionhorizontal DIN rail NS 35, EN 60715
Assembly instructionsalignable: horizontally 0 mm, vertically 50 mm

Connection data, input

Connection methodScrew connection
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.14
Stripping length9 mm
Screw threadM2,5

Connection data, output

Connection methodScrew connection
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.14
Stripping length9 mm
Screw threadM2,5

Signaling

Status display"DC OK" LED green
Note on status displayUOUT< 0.9 x UN: LED flashing

Standards and Regulations

Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Noise immunityEN 61000-6-2:2005
Connection in acc. with standardCUL
Standards/regulationsEN 61000-4-2
Contact discharge4 kV (Test Level 2)
Standards/regulationsEN 61000-4-3
Frequency range80 MHz ... 1 GHz
Test field strength10 V/m
Frequency range1.4 GHz ... 2 GHz
Test field strength3 V/m
Standards/regulationsEN 61000-4-4
CommentsCriterion B
Standards/regulationsEN 61000-6-3
EN 61000-4-6
Frequency range0.15 MHz ... 80 MHz
Voltage10 V (Test Level 3)
Standards/regulationsEN 61000-4-11
Low Voltage DirectiveConformance with LV directive 2006/95/EC
Standard - Electrical safetyEN 60950-1/VDE 0805 (SELV)
Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installationsEN 50178/VDE 0160 (PELV)
Standard – Safety extra-low voltageEN 60950-1 (SELV)
EN 60204 (PELV)
Standard - Safe isolationDIN VDE 0100-410
Standard – Protection against shock currents, basic requirements for protective separation in electrical equipmentEN 50178
Standard – Limitation of mains harmonic currentsEN 61000-3-2
UL approvalsUL/C-UL listed UL 508
UL/C-UL Recognized UL 60950-1
Shock18 ms, 30g, in each space direction (according to IEC 60068-2-27)
Vibration (operation)< 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6)
15 Hz ... 150 Hz, 2.3g, 90 min.

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 25;
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2866323 Low-voltage industrial controls and switchgear (EC002540)
Feature Name Feature Value
Voltage type (supply voltage) (EF002991) AC
1st secondary output voltage (EF006792) 22.5 V
Max. output current 1 (EF008284) 10 A
Secondary voltage adjustable (EF007002) Yes
Nominal value output voltage 1 (EF009393) 24 V
Nominal value output current 1 (EF009396) 10 A
Short-circuit-proof (EF007332) Yes
Rated supply voltage AC 50 Hz (EF007076) 85 V
Rated supply voltage AC 60 Hz (EF007077) 100 V
Output voltage stabilized (EF003092) Yes
Power consumption (EF000346) 272 VA
Power output (EF003034) 240 W
Stabilized (EF005302) Yes
Type of electric connection (EF003961) Screw connection
Suitable for rail mounting (EF003972) Yes
Wall mounting possible (EF003973) No
Modular version (EF001126) No
Built-in height (EF000332) 130 mm
Direct mounting possible (EF005689) No
Width (EF000008) 60 mm
Height (EF000040) 130 mm
Depth (EF000049) 152.5 mm
Suitable for safety functions (EF001597) Yes
SIL according to IEC 61508 (EF009889) None
Performance level according to EN ISO 13849-1 (EF007399) None
Degree of protection (IP) (EF005474) IP20
Degree of protection (NEMA) (EF011959) Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
