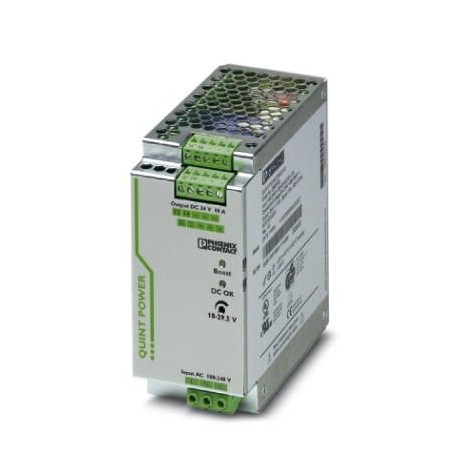

QUINT-PS/1AC/24DC/10 2866763 PHOENIX CONTACT Power supply unit

QUINT-PS/1AC/24DC/10

2866763

PHOENIX CONTACT

1 Pcs.

Power supply unit Primary Switching Power Supplies, QUINT POWER, Screw Connection, Rail Mounting, SFB Technology (Selective Fuse Breaking), Input:1Phase, Output: 24 VDC / 10 A

Automation > DC-power supply
Power Supplies (PS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2866763
Packing unit1 pc
Catalog pagePage 159 (C-6-2015)
GTIN4046356113793
Weight per Piece (excluding packing)1,100.000 g
Custom tariff number85044030
Country of originTH (Thailand)

Dimensions

Width60 mm
Height130 mm
Depth125 mm
Width with alternative assembly122 mm
Height with alternative assembly130 mm
Depth with alternative assembly63 mm

Ambient conditions

Degree of protectionIP20
Ambient temperature (operation)-25 °C ... 70 °C (> 60 °C Derating: 2.5 %/K)
Ambient temperature (start-up type tested)-40 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Max. permissible relative humidity (operation)≤ 95 % (at 25 °C, non-condensing)
Climatic class3K3 (in acc. with EN 60721)
Degree of pollution2
Installation height5000 m

Input data

Nominal input voltage range100 V AC ... 240 V AC
110 V DC ... 250 V DC
Input voltage range85 V AC ... 264 V AC
90 V DC ... 350 V DC (UL 508: ≤ 300 V DC)
Dielectric strength maximum300 V AC
AC frequency range45 Hz ... 65 Hz
Frequency range DC0 Hz
Discharge current to PE< 3.5 mA
Current consumption2.2 A (120 V AC)
1.3 A (230 V AC)
2.5 A (110 V DC)
1.2 A (220 V DC)
Nominal power consumption302 VA
Inrush surge current< 15 A
Mains buffering> 36 ms (120 V AC)
> 36 ms (230 V AC)
Input fuse10 A (slow-blow, internal)
Choice of suitable circuit breakers10 A ... 20 A (AC: Characteristics B, C, D, K)
Type of protectionTransient surge protection
Protective circuit/componentVaristor, gas-filled surge arrester

Output data

Nominal output voltage24 V DC ±1 %
Setting range of the output voltage (USet)18 V DC ... 29.5 V DC (> 24 V DC, constant capacity restricted)
Nominal output current (IN)10 A (-25 °C ... 60 °C, UOUT= 24 V DC)
POWER BOOST (IBoost)15 A (-25°C ... 40°C permanent, UOUT= 24 V DC )
Selective Fuse Breaking (ISFB)60 A (12 ms)
Derating60 °C ... 70 °C (2.5%/K)
Connection in parallelYes, for redundancy and increased capacity
Connection in seriesyes
Feedback resistancemax. 35 V DC
Output overvoltage protection< 35 V DC
Control deviation< 1 % (change in load, static 10 % ... 90 %)
< 2 % (change in load, dynamic 10 % ... 90 %)
< 0.1 % (change in input voltage ±10 %)
Residual ripple< 50 mVPP(with nominal values)
Output power240 W
Typical response time< 0.15 s
Maximum power dissipation in no-load condition9.1 W
Power loss nominal load max.22 W

General

Net weight1.1 kg
Efficiency> 92.5 % (for 230 V AC and nominal values)
Insulation voltage input/output4 kV AC (type test)
2 kV AC (routine test)
Insulation voltage input / PE3.5 kV AC (type test)
2 kV AC (routine test)
Insulation voltage output / PE500 V DC (routine test)
Protection classI
Degree of protectionIP20
MTBF (IEC 61709, SN 29500)> 940000 h (25 °C)
> 530000 h (40 °C)
> 230000 h (60 °C)
Mounting positionhorizontal DIN rail NS 35, EN 60715
Assembly instructionsalignable: PN≥50%, 5 mm horizontally, 15 mm next to active components, 50 mm vertically
alignable: PN<50%, 0 mm horizontally, 40 mm vertically top, 20 mm vertically bottom

Connection data, input

Connection methodPluggable screw connection
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.16
Conductor cross section AWG max.12
Stripping length7 mm
Screw threadM3

Connection data, output

Connection methodPluggable screw connection
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.16
Conductor cross section AWG max.12
Stripping length7 mm
Screw threadM3

Connection data for signaling

Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.16
Conductor cross section AWG max.12
Screw threadM3

Standards and Regulations

Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Noise emissionEN 55011 (EN 55022)
Noise immunityEN 61000-6-2:2005
Connection in acc. with standardCSA
Standards/regulationsEN 61000-4-2
Contact discharge4 kV (Test Level 2)
Standards/regulationsEN 61000-4-3
Frequency range80 MHz ... 1 GHz
Test field strength10 V/m (Test Level 3)
Frequency range1.4 GHz ... 2 GHz
Test field strength3 V/m (Test Level 2)
Standards/regulationsEN 61000-4-4
CommentsCriterion B
Standards/regulationsEN 61000-6-3
EN 61000-4-6
Frequency range0.15 MHz ... 80 MHz
Voltage10 V (Test Level 3)
Low Voltage DirectiveConformance with LV directive 2006/95/EC
Standard - Electrical safetyIEC 60950-1/VDE 0805 (SELV)
Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installationsEN 50178/VDE 0160 (PELV)
Standard – Safety extra-low voltageIEC 60950-1 (SELV) and EN 60204-1 (PELV)
Standard - Safe isolationDIN VDE 0100-410
Standard – Limitation of mains harmonic currentsEN 61000-3-2
Standard - Equipment safetyBG (design tested)
Standard - Approval for medical useIEC 60601-1, 2 x MOOP
Shipbuilding approvalDNV GL (EMC B), ABS, LR, RINA, NK, BV
UL approvalsUL Listed UL 508
UL/C-UL Recognized UL 60950-1
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D (Hazardous Location)
DeviceNet approvalDeviceNet™ Power Supply Conformance Tested
Shock18 ms, 30g, in each space direction (according to IEC 60068-2-27)
Vibration (operation)< 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6)
15 Hz ... 150 Hz, 2.3g, 90 min.
Approval - requirement of the semiconductor industry with regard to mains voltage dipsSEMI F47-0706 Compliance Certificate
Information technology equipment - safety (CB scheme)IEC 60950-1 (2ndEdition)
Rail applicationsEN 50121-4
Overvoltage category (EN 62477-1)III

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 25;
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications
