View larger
Images are for illustrative purposes only. Please refer to data sheet for details

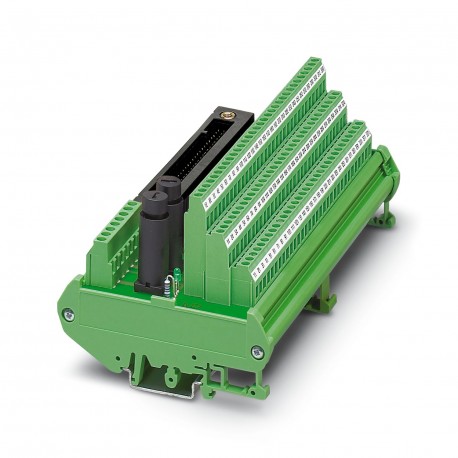

FLKMS-KS50/32IM/YCS 2314451 PHOENIX CONTACT Passive module
FLKMS-KS50/32IM/YCS
2314451
PHOENIX CONTACT
1 Pcs.
Passive module
32-channel module with 3-conductor screw connection and redundant voltage supply. Suitable for Yokogawa ADV151 and ADV551 cards.
Automation > Interface module
INTERFACE Components (IF)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2314451 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 520 (C-5-2017) |
| GTIN | 4046356126922 |
| Weight per Piece (excluding packing) | 433.680 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
General
| Max. perm. operating voltage | 30 V DC |
|---|---|
| Max. perm. current (per branch) | 1 A |
| Max. permissible current (all branches) | 2 A |
| Max. permissible current (separate power supply) | 4 A |
| Number of positions | 50 |
| Status display | Green LED |
| Mounting position | any |
| Assembly instructions | In rows with zero spacing |
| Degree of protection | IP00 |
Connection data for connection 1
| Connection name | Field level |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Connection data for connection 2
| Connection name | Controller level |
|---|---|
| Connection method | Yokogawa KS-compatible |
| Torque | 0.5 Nm |
| Number of connections | 1 |
| Number of positions | 50 |
| Note | Usable system cables: Phoenix Contact YUC50, Yokogawa AKB331 |
Supported controller
| Controller | YOKOGAWA CS3000 CentumVP |
|---|---|
| - suitable I/O card | ADV151 |
| ADV161 | |
| ADV551 | |
| ADV561 | |
| Controller | YOKOGAWA STARDOM |
| - suitable I/O card | NFDV151 |
| NFDV161 | |
| NFDV551 | |
| NFDV561 |
Standards and Regulations
| Standards/regulations | DIN EN 50178 |
|---|---|
| IEC 60664 | |
| Rated insulation voltage | 50 V |
| Rated surge voltage | 0.5 kV (Functional insulation) |
| Degree of pollution | 2 |
| Overvoltage category | II |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
