View larger
Images are for illustrative purposes only. Please refer to data sheet for details

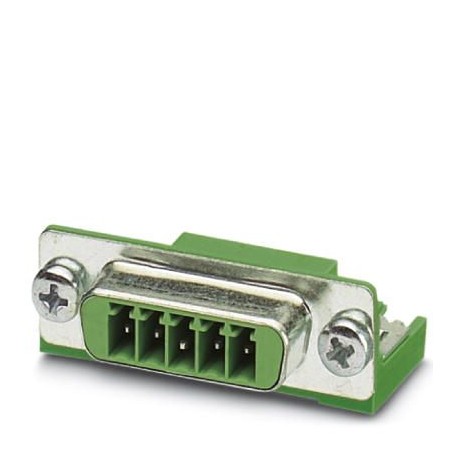

VS-PSC 1,5/5-M PE 1689323 PHOENIX CONTACT Contact insert
VS-PSC 1,5/5-M PE
1689323
PHOENIX CONTACT
10 Pcs.
Contact insert
POWER-SUBCON base housing, for the recessed side, 5 poles, with PE advance contact, shielded, color: Green
Connectors > D-Sub connector
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1689323 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 215 (C-2-2013) |
| GTIN | 4017918893170 |
| Weight per Piece (excluding packing) | 8.110 g |
| Custom tariff number | 85366990 |
| Country of origin | PL (Poland) |
Mechanical characteristics
| Number of positions | 5 |
|---|---|
| Insertion/withdrawal cycles | ≥ 100 |
| Connection method | Printed circuit connection |
| Conductor cross section | 0.14 mm² ... 1.5 mm² |
| Connection cross section AWG | 28 ... 16 |
| Mounting type | Threads |
| Insulation resistance | 1 TΩ |
| Type | 15 |
| Size of housing | 2 |
| Type of note | Notes on operation |
| Note | Only actuate MINI COMBICON connectors when under no load condition. If for operating reasons small loads must be switched, experimental values are available upon request. |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Contact carrier material | PA |
| Contact material | Copper alloy |
| Contact surface material | Tin-plated |
| Height | 13.7 mm |
Electrical characteristics
| Number of positions | 5 |
|---|---|
| Rated current | 8 A |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated voltage (III/3) | 250 V |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027140816eCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440205eCl@ss 8.027440205eCl@ss 9.027440205
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 5 |
