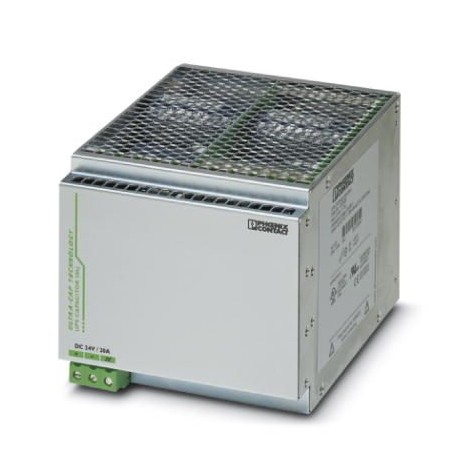

UPS-CAP/24DC/20A/20KJ 2320380 PHOENIX CONTACT Energy storage
UPS-CAP/24DC/20A/20KJ
2320380
PHOENIX CONTACT
1 Pcs.
Energy storage
Maintenance-free energy storage system based on a double-layer capacitor, 24 V DC, 20 KJ, automatic recognition and communication with QUINT UPS-IQ
Automation > Battery (lithium) for vehicles and applications
Power Supplies (PS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2320380 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 284 (C-4-2017) |
| GTIN | 4046356599030 |
| Weight per Piece (excluding packing) | 3,528.000 g |
| Custom tariff number | 85322900 |
| Country of origin | CN (China) |
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | -40 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 60 °C |
| Max. permissible relative humidity (operation) | ≤ 95 % |
| Degree of pollution | 2 |
| Installation height | 2000 m |
Input data
| Nominal input voltage | 24 V DC |
|---|---|
| Input voltage range | 18 V DC ... 30 V DC |
| Current consumption | 5 A |
| Buffer period | 12 min. (1 A) |
| 33 s (20 A) |
Output data
| Nominal output voltage | 24 V DC |
|---|---|
| Setting range of the output voltage (USet) | 22 V DC ... 27 V DC |
| Nominal output current (IN) | 20 A |
| POWER BOOST (IBoost) | 26 A |
| Connection in series | No |
| Power loss nominal load max. | 3.6 W |
| Output fuse | 2x 25 A (internal) |
General
| IQ technology | Yes |
|---|---|
| Disposal | Used batteries must not be thrown away with household waste, they should instead be disposed of in accordance with applicable national regulations. They can also be returned to Phoenix Contact or the manufacturer. |
| Net weight | 2.9 kg |
| Memory medium | Dual layer capacitor |
| Protection class | III |
| Degree of protection | IP20 |
| MTBF (IEC 61709, SN 29500) | |
| > 695000 h (40 °C) | |
| Mounting position | horizontal DIN rail NS 35, EN 60715 |
Standards and Regulations
| Connection in acc. with standard | CUL |
|---|---|
| Standard - Electrical safety | EN 60950-1/VDE 0805 (SELV) |
| Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installations | EN 50178/VDE 0160 (PELV) |
| Shipbuilding approval | GL applied for |
| UL approvals | UL/C-UL Recognized UL 60950-1 |
| Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) |
| Vibration (operation) | |
| 15 Hz ... 150 Hz, 2.3g, 90 min. |
Classifications
eCl@ss 4.027040603eCl@ss 4.127040603eCl@ss 5.027040603eCl@ss 5.127040600eCl@ss 6.027040600eCl@ss 7.027050403eCl@ss 8.027050403eCl@ss 9.027050403
| Feature Name | Feature Value |
|---|---|
| Size indication (EF000363) | Block |
| Nominal voltage (EF000002) | 24 V |
| Capacity (EF000364) | 200 mAh |
| Length (EF001438) | 176 mm |
| Height including pole (EF005894) | 130 mm |
| Width (EF000008) | 150 mm |
| Battery pack (EF006177) | No |
| Suitable for EX-applications (EF001779) | No |
| Plastic housing (EF001034) | No |
| Ambient temperature (EF002386) | 60 °C |
| Suitable for rapid charger (EF005851) | No |
