View larger
Images are for illustrative purposes only. Please refer to data sheet for details

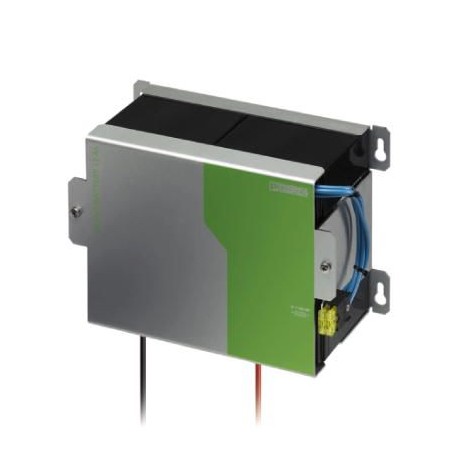

QUINT-BAT/24DC/12AH 2866365 PHOENIX CONTACT Energy storage
QUINT-BAT/24DC/12AH
2866365
PHOENIX CONTACT
1 Pcs.
Energy storage
Energy storage, lead AGM, VRLA technology, 24 V DC, 12 Ah. Connection via male cable terminal, 14 mm.
Automation > Battery (lithium) for vehicles and applications
Power Supplies (PS)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2866365 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 303 (C-4-2017) |
| GTIN | 4017918959760 |
| Weight per Piece (excluding packing) | 9,000.000 g |
| Custom tariff number | 85072080 |
| Country of origin | CN (China) |
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | 0 °C ... 40 °C |
| Ambient temperature (storage/transport) | 0 °C ... 40 °C |
Output data
| Nominal output voltage | 24 V DC |
|---|---|
| Output current Imax | 50 A |
| Connection in parallel | Yes, for increasing the buffer period |
| Connection in series | No |
| Output fuse | 2x 25 A |
General
| IQ technology | no |
|---|---|
| Disposal | Used batteries must not be thrown away with household waste, they should instead be disposed of in accordance with applicable national regulations. They can also be returned to Phoenix Contact or the manufacturer. |
| Net weight | 9 kg |
| Memory medium | battery 12 Ah |
| Protection class | III |
| Degree of protection | IP20 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 3 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
